Loading Conveyor
Applicable Industry:
Automatic
Adopt an automatic weighing system.
Humanized Design
The loading platform is set at a high distance of 70cm from the ground to achieve easy loading and a humanized design.
Quality Assurance
All electrical and air components adopt German, Japanese brands.
Technical Parameter
| Product Model | ZS-60 | ZS-60G | ZS-60T | ZS-80 | ZS-80G | ZS-80T |

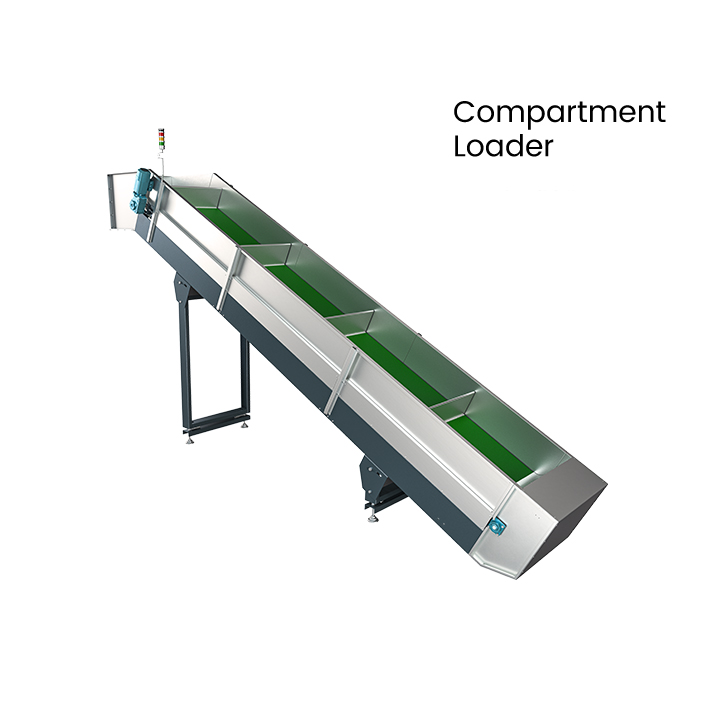

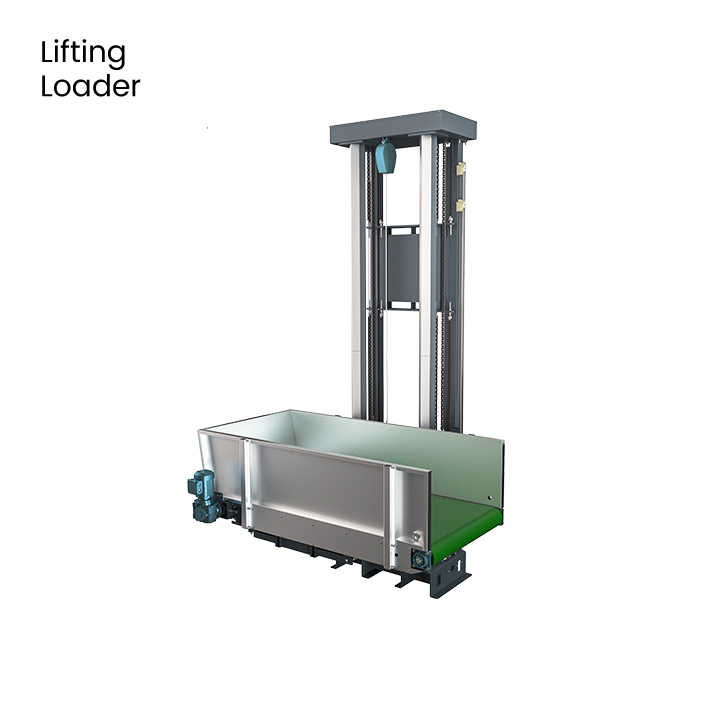

| Working Mode | Loading Conveyor | Compartment Conveyor | Lifting Conveyor | Loading Conveyor | Compartment Conveyor | Lifting Conveyor |
| Maximum Load Capacity per Batch (kg) | 60 | 60×4 | 60 | 80 | 80×4 | 80 |
| Voltage (V) | 380 | 380 | 380 | 80 | 380 | 380 |
| Connected Power (kW) | 1.65 | 2.2 | 3.75 | 2.25 | 3 | 3.75 |
| Power Consumption (kWh/h) | 0.5 | 0.6 | 0.8 | 0.6 | 0.7 | 0.8 |
| Weight (kg) | 980 | 1300 | 1370 | 1222 | 1355 | 1470 |
| Overall Dimension (W×D×H, mm) | 3525×8535×1540 | 1417×8800×4397 | 2102×2192×3658 | 3731×9320×1601 | 1424×4243×9585 | 2302×2192×3858 |
