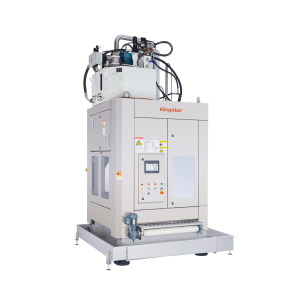

Hydraulic Press Extractor (Medium 60kg)
Applicable Industry:
Oil Cylinder
The hydraulic cylinder has a diameter of 410 mm.
Membrane Pressure
It provides higher pressure and greater dehydration performance, with working pressure up to 45 bar.
Oil Hydraulic System
Hydraulic components are sourced from world-renowned brands such as Parker (USA) and Rexroth (Germany), ensuring long-term operational stability.
Control System
The control system is Mitsubishi from Japan.
Technical Parameters
| Product Model | YYT-60P | YYT-80P | YYT-80F |
| Maximum Load Capacity per Batch (kg) | 60 | 80 | 80 |
| Press Basket Diameter/mm | 1008 | 1224 | 1280 |
| Bladder Pressure/bar | 45 | 45 | 56 |
| Bladder Diameter/mm | 1003 | 1219 | 1282 |
| Voltage (V) | 380 | 380 | 380 |
| Connected Power (kW) | 25 | 29 | 38 |
| Weight (kg) | 15550 | 20600 | 23000 |
| Overall Dimension (W×D×H, mm) | 2340×2910×4050 | 2530×3200×4070 | 2654×3240×4250 |
