The concept of cleanliness in laundry operations, especially in large-scale facilities like hotels, is pivotal. In the pursuit of achieving the highest standards of cleanliness while maintaining efficiency, the design of tunnel washers has evolved significantly. One of the key innovations in this area is the counter-flow rinsing structure. In contrast to the traditional "single inlet and single outlet" design, counter-flow rinsing offers several advantages, particularly in water and energy conservation.
Understanding Single-Inlet and Single-Outlet Design
The single-inlet and single-outlet design is straightforward. Each rinsing compartment in the tunnel washer has its own inlet and outlet for water. While this method ensures that every compartment receives fresh water, it leads to substantial water consumption. Given the increasing focus on sustainability, this design is less favored due to its inefficiency in water usage. In a world where environmental conservation is becoming a critical priority, this design falls short of meeting modern standards.
Introducing counter-flow Rinsing Structure
counter-flow rinsing represents a more sophisticated approach. In this structure, fresh clean water is introduced at the final rinsing compartment and flows towards the first compartment, opposite to the movement of the linen. This method maximizes the use of clean water and minimizes waste. Essentially, as the linen moves forward, it encounters progressively cleaner water, ensuring thorough rinsing and high cleanliness levels.

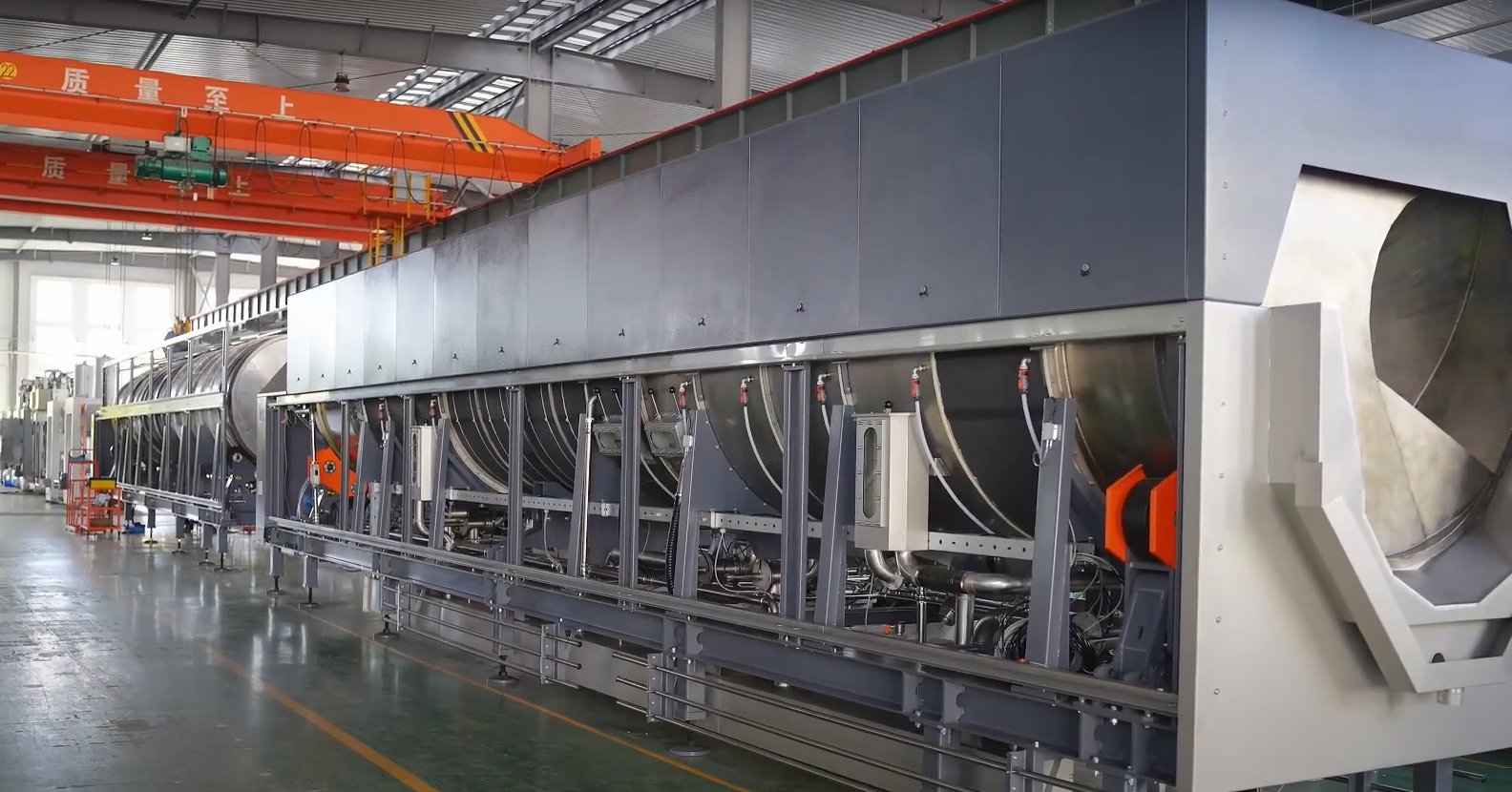

How Counter-flow Rinsing Works
In a 16-compartment tunnel washer, where compartments 11 to 14 are designated for rinsing, counter-flow rinsing involves introducing clean water into compartment 14 and discharging it from compartment 11. This counter-current flow ensures optimal utilization of water, enhancing the rinsing process's effectiveness. However, within the realm of counter-flow rinsing, there are two primary structural designs: internal circulation and external circulation.
Internal Circulation Structure
The internal circulation structure involves perforating the compartment walls to allow water to circulate within three or four rinsing compartments. While this design aims to facilitate the movement of water and improve rinsing, it often results in water from different compartments mixing during the washer's rotation. This mixing can dilute the cleanliness of the rinse water, significantly reducing the overall rinsing effect. Consequently, this design is often termed the "pseudo-counter-flow rinsing structure" due to its limitations in maintaining water purity.

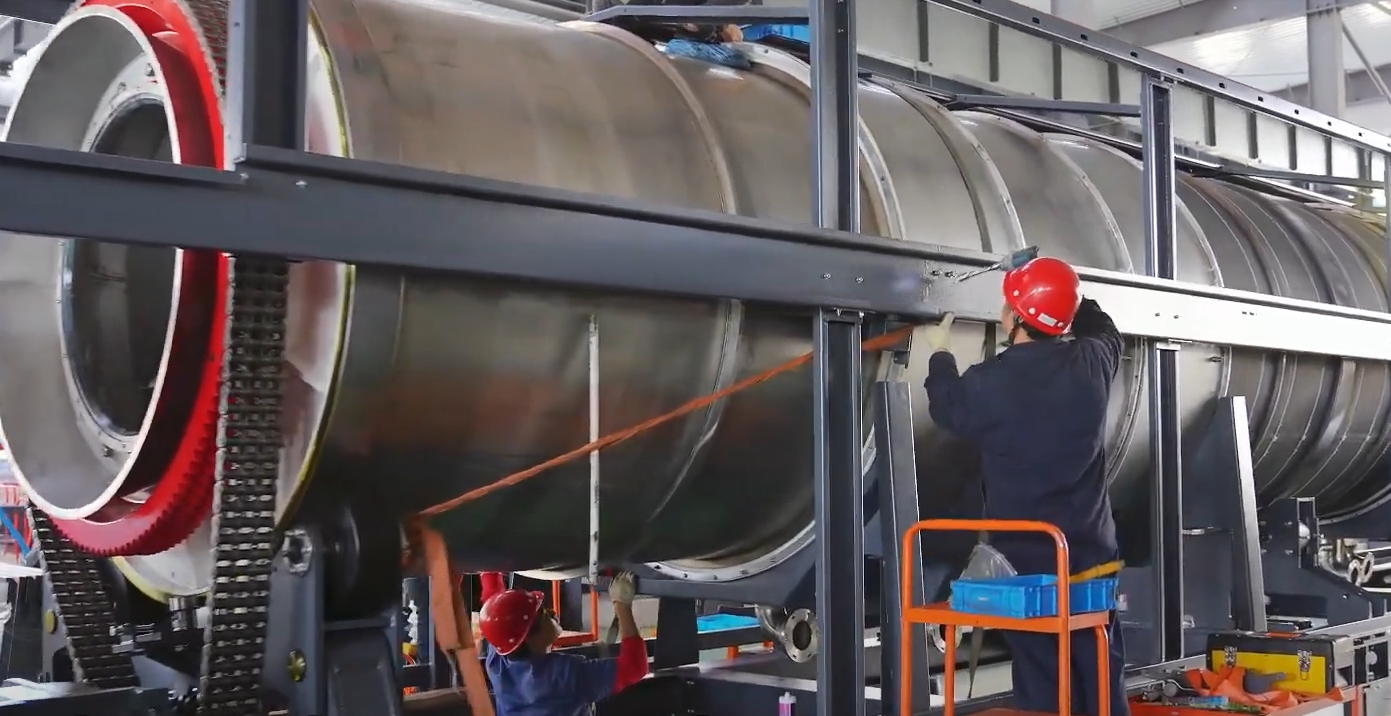

External Circulation Structure
On the other hand, the external circulation structure offers a more effective solution. In this design, an external pipeline connects the bottom of each rinsing compartment, enabling water to be pressed from the last rinsing compartment upwards through each compartment. This structure ensures that the water in each rinsing compartment remains clean, effectively preventing the back-flow of dirty water into cleaner compartments. By ensuring that the linen moving forward only contacts clean water, this design maintains high rinsing quality and overall cleanliness of the wash.
Moreover, the external circulation structure necessitates a double-compartment design. This means each rinsing compartment is divided into two separate sections, requiring more valves and components. While this increases the overall cost, the benefits in terms of cleanliness and efficiency justify the investment. The double-compartment design plays a crucial role in maintaining the integrity of the counter-flow rinsing process, ensuring that each piece of linen is thoroughly rinsed with clean water.
Addressing Foam and Floating Debris

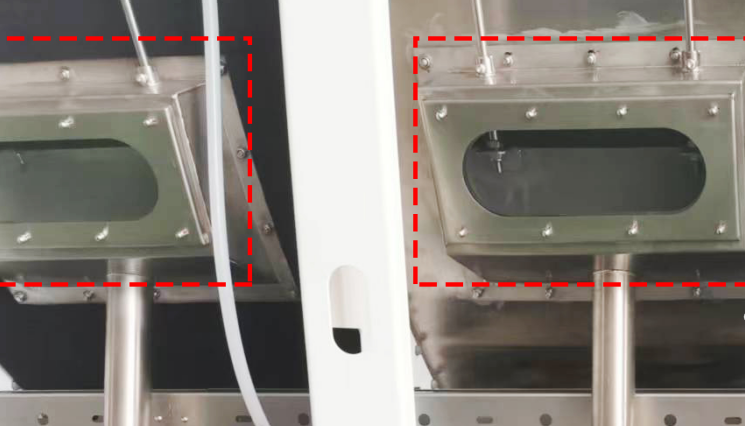

During the washing process, the use of detergents inevitably generates foam and floating debris. If these byproducts are not promptly removed, they can compromise the washing quality and shorten the linen's lifespan. To address this, the first two rinsing compartments must be equipped with overflow holes. The primary function of these overflow holes is not merely to discharge excess water but also to remove the foam and floating debris generated by the repeated beating of the linen inside the drum.
The presence of overflow holes ensures that the rinse water remains free of contaminants, further enhancing the rinsing process's effectiveness. However, if the design is not a full double-compartment structure, implementing the overflow process becomes challenging, compromising the rinsing quality. Therefore, the double-compartment design, coupled with overflow holes, is essential for achieving optimal rinsing results.
Conclusion
In conclusion, the counter-flow rinsing structure represents a significant advancement in tunnel washer design, addressing the limitations of the traditional single inlet and single outlet design. By maximizing water efficiency and ensuring high rinsing quality, the counter-flow rinsing structure aligns with the modern emphasis on sustainability and cleanliness. Among the two primary designs, the external circulation structure stands out for its effectiveness in maintaining clean water flow and preventing back-flow, thereby ensuring superior rinsing quality.
As laundry operations continue to evolve, adopting advanced designs like the counter-flow rinsing structure becomes imperative. The integration of features such as the double-compartment design and overflow holes further enhances the effectiveness of the rinsing process, ensuring that the laundry remains impeccably clean and well-maintained.
