Introduction
In the realm of industrial laundry, maintaining high washing quality is essential. One crucial factor that significantly affects washing quality is the temperature of the water during the main wash phase in tunnel washer systems. This article delves into how maintaining the appropriate main wash temperature can enhance washing quality and efficiency, and how advanced insulation designs can play a pivotal role.
Ensuring Optimal Washing Quality: Importance of Main Wash Temperature
To ensure the main wash quality in a tunnel washer system, it is generally required that the water temperature reach 75 degrees Celsius (sometimes even 80 degrees) during the main wash. The washing time should not be less than 15 minutes. Meeting these two conditions is crucial for effective cleaning. If these conditions are not met, the washing quality is compromised, which can contribute to higher operational costs and reduced efficiency.
Importance of Insulation in Tunnel Washers: Diameter and Insulation Needs
The diameter of the main wash drum in a tunnel washer is relatively large. For instance, a 60 kg tunnel washer has a main wash drum diameter of about 1.8 meters. If the outer drum surface of the main wash drum is not properly insulated, especially in winter, the temperature drops rapidly. When the main wash water does not reach the set temperature, the washing quality will be significantly reduced. This also leads to higher steam consumption and affects washing efficiency.
Challenges with Insufficient Insulation: Brief Temperature Peaks
Many manufacturers only insulate two steam-heated compartments. The main wash temperature only briefly reaches the set value. Due to the lack of insulation in other main wash compartments, the water temperature quickly drops to around 50 degrees as it moves back and forth in the compartment. This prevents the cleaning agents from fully reacting, thus failing to achieve the desired cleaning effect. Poor insulation in the main wash drum is one of the reasons for poor washing quality.
CLM's Advanced Insulation Design: Comprehensive Insulation Approach

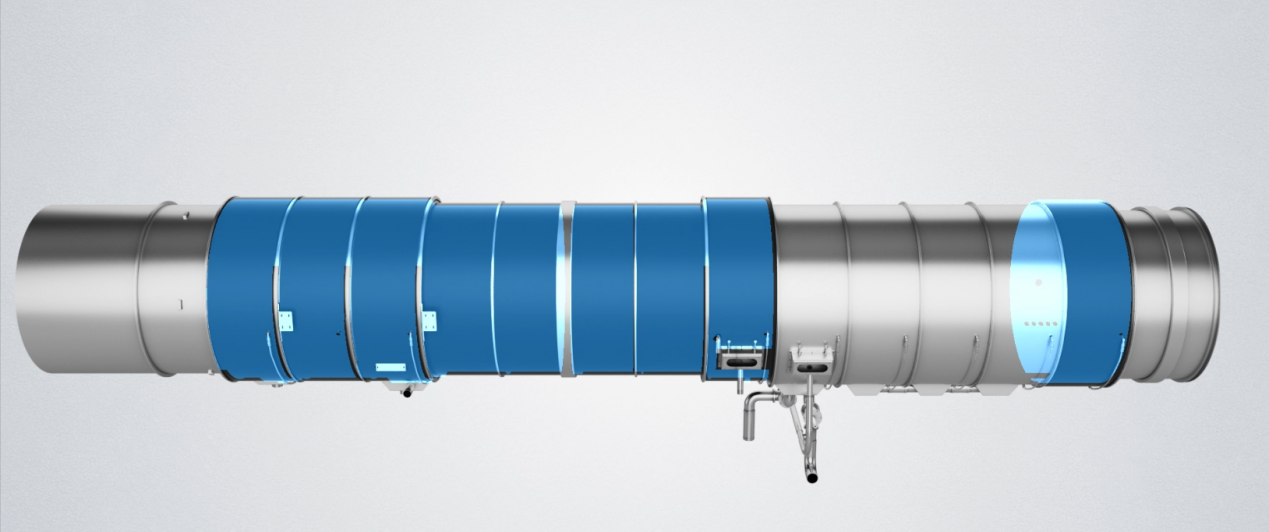

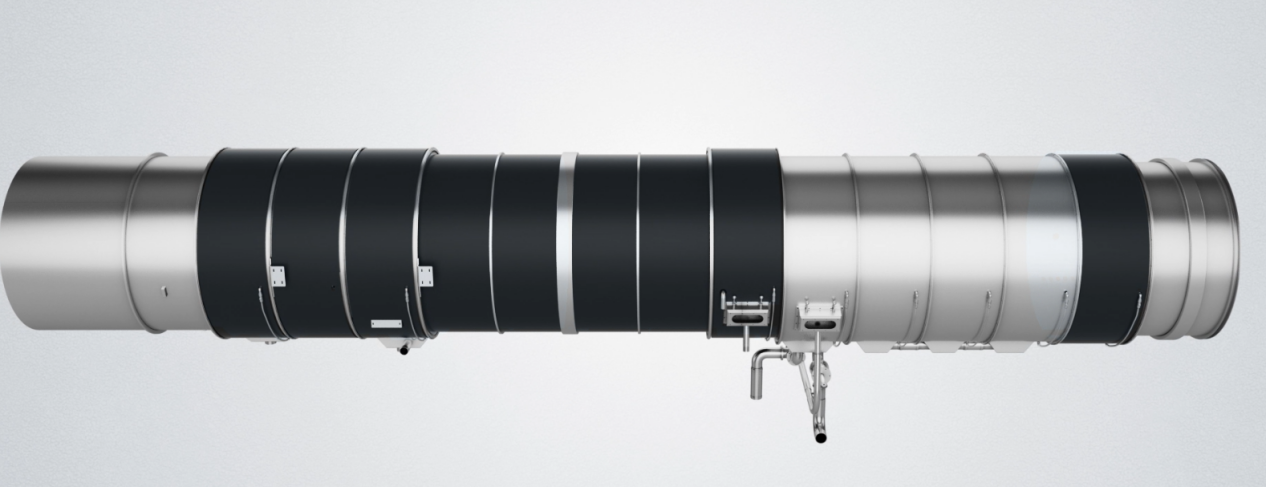

CLM's tunnel washers feature more compartments with an insulation design. All main wash and neutralization compartments are insulated, ensuring that the temperature is maintained throughout the washing process. This design reduces temperature loss and steam consumption, significantly improving the reaction speed and effectiveness of cleaning agents and stabilizing washing quality.
Substantial Benefits of Proper Insulation: Enhanced Reaction Speed of Cleaning Agents
With proper insulation, the temperature within the main wash compartment remains stable, allowing cleaning agents to react more effectively. This not only enhances the washing quality but also ensures that the laundry is cleaned thoroughly and efficiently.
Reduction in Steam Consumption
By maintaining the appropriate temperature, the need for additional steam is reduced. This leads to lower operational costs and contributes to a more sustainable and eco-friendly laundry process.
Increased Efficiency and Cost-Effectiveness: Stable Washing Quality
Proper insulation ensures that the washing quality remains consistent. This is crucial for industrial laundries that need to maintain high standards of cleanliness and hygiene.
Lower Operating Costs
With reduced steam consumption and enhanced efficiency, the overall operating costs are significantly lower. This allows laundry businesses to operate more cost-effectively and competitively.
Conclusion: The Future of Tunnel Washer Systems
Maintaining the appropriate main wash temperature is crucial for ensuring high washing quality in tunnel washer systems. Advanced insulation designs, such as those implemented by CLM, play a vital role in maintaining these temperatures, reducing steam consumption, and enhancing the overall efficiency and cost-effectiveness of laundry operations. By investing in properly insulated tunnel washers, laundry businesses can achieve better washing quality, lower operating costs, and a more sustainable operation.
Post time: Jul-22-2024
