When it comes to the seamless operation of a tunnel washer system, the role of the tumble dryer cannot be overlooked. Tumble dryers, particularly those paired with tunnel washers, play a crucial role in ensuring that linens are dried efficiently and thoroughly. These dryers are responsible for drying towels and shaking out linens, which is a critical step in the laundry process.
Understanding Tumble Dryer Capacities

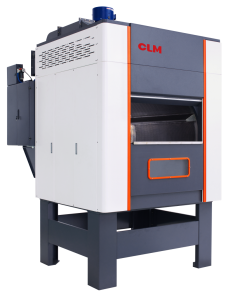

Currently, the market offers tumble dryers with capacities of 100 kg, 120 kg, and 150 kg. The selection of a tumble dryer’s capacity should be directly influenced by the capacity of the tunnel washer’s chamber. For instance, if you are using a CLM 60 kg tunnel washer, which handles 60 kg of laundry per cycle, a 120 kg tumble dryer is recommended to ensure optimal drying performance.
Heating Methods and Energy Efficiency
Tumble dryers are available with different heating methods, including steam heating, gas heating, and heat-conducting oil heating. Each heating method has its own set of advantages, depending on the specific needs of the laundry operation.
Steam Heating: Steam heating is a popular choice due to its energy efficiency and effectiveness in high-capacity operations. The steam-powered heat exchange system is composed of a heater and a steam trap, both of which are critical to the dryer’s performance.
Gas Heating: Gas heating is often chosen for its rapid heat-up times and consistent temperature maintenance, making it suitable for operations that require quick turnaround times.
Heat-Conducting Oil Heating: This method is known for its ability to maintain a consistent temperature over extended periods, making it ideal for large-scale operations that need steady and reliable heat.
Energy efficiency is another crucial factor in the design of tumble dryers. Some tumble dryers feature direct discharge structures, while others incorporate heat recovery systems that recycle heat, thereby reducing overall energy consumption.
Material Discharge Methods
The way in which dried materials are discharged from the tumble dryer also plays a significant role in the overall efficiency of the laundry process. There are two primary discharge methods:
Air-Blow Discharge: This method uses powerful fans to blow the dried linens out of the dryer. It is efficient and minimizes manual handling, which can reduce labor costs and the risk of damage to linens.
Air-Blow Plus Tilt Discharge: This combined method adds a tilt function to the air-blow discharge, making it even more effective by using gravity to assist in the discharge process. This is particularly useful for larger or heavier loads.
Critical Components of Tumble Dryers
The stability and efficiency of a tumble dryer, especially one integrated into a tunnel washer system, depend heavily on several critical components. Among these, the heat exchange system, transmission method, and quality of supporting hardware are paramount. Today we will focus on the heat exchange system when examining the stability of the tumble dryer.
Heat Exchange System: Heater and Condensate System
The heat exchange system is the heart of any steam-powered tumble dryer. It consists of the heater and the steam trap, both of which must be of the highest quality to ensure long-term reliability and efficiency.
Heater (Radiator/Heat Exchanger): The heater is responsible for converting steam into heat that is used to dry the linens. The material and manufacturing process of the heater are crucial, as they determine the unit’s durability. If the heater is made from subpar materials, it may become vulnerable to steam penetration over time, leading to leaks and inefficiencies. High-quality heaters, on the other hand, are designed to withstand prolonged exposure to steam without degrading.

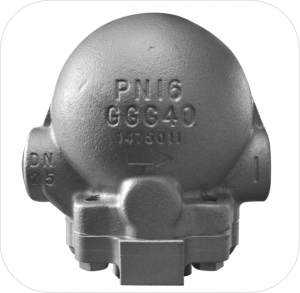

Steam Trap: The steam trap is a device that removes condensate from the steam system while preventing the loss of live steam. A malfunctioning steam trap can be a significant issue, as it may go unnoticed until it has already caused a reduction in heating efficiency. The loss of steam not only slows down the drying process but also leads to increased operational costs due to wasted energy. Therefore, choosing a reliable steam trap is crucial for maintaining the efficiency of the heat exchange system.
CLM’s tumble dryers are equipped with Spirax Sarco steam traps, known for their excellent condensate removal capabilities. These high-quality components are designed to ensure that the dryer operates at peak efficiency, reducing downtime and energy costs.
The Importance of Maintenance and Regular Inspections
Regular maintenance and inspections are vital for ensuring the long-term stability and efficiency of a tumble dryer. Even the highest-quality components can wear out over time, and identifying potential issues early can prevent costly repairs and downtime.
Conclusion
The stability and efficiency of a tumble dryer are critical to the overall performance of a tunnel washer system. By paying close attention to the heat exchange system, laundry operations can ensure that their dryers operate reliably and efficiently, reducing downtime and operational costs.
