The water extraction press is the core equipment of the tunnel washer system, and its stability significantly impacts the entire system's operation. A stable water extraction press ensures efficient and effective performance, minimizing downtime and damage to linen. This article delves into the critical aspects that influence the stability of the water extraction press: the hydraulic system, oil cylinder, and water extraction basket.

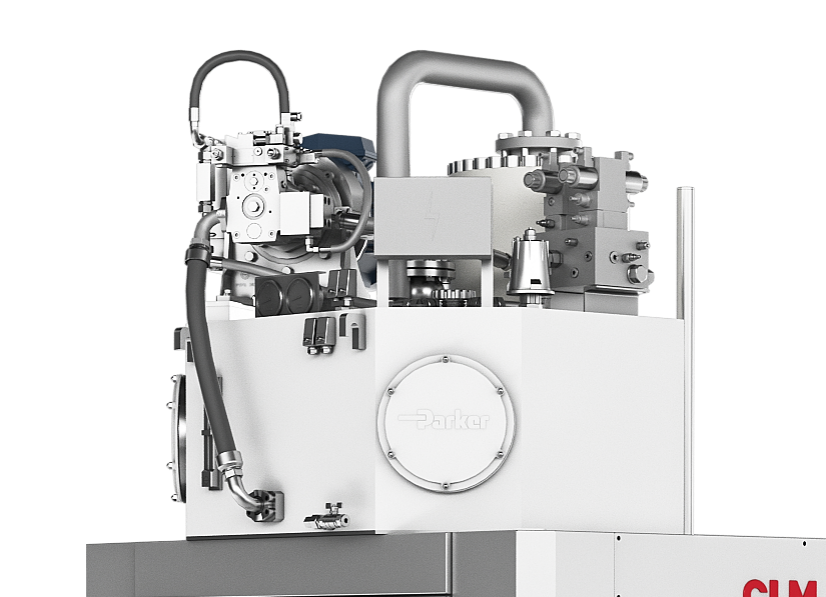

The Hydraulic System: The Heart of the Water Extraction Press
The hydraulic system is fundamental to the operation of the water extraction press. It determines the stability of the pressure applied during the extraction process. Several factors within the hydraulic system play crucial roles:
Stroke of the Oil Cylinder: The oil cylinder's stroke determines the range of movement during the pressing action. A well-calibrated stroke ensures consistent pressure application, which is vital for maintaining the stability of the water extraction press.
Pressing Actions: Each pressing action must be precise and consistent. The hydraulic system controls these actions, ensuring that every press is uniform and effective.
Response Speed of the Main Cylinder: The speed at which the main cylinder responds to commands affects the overall efficiency of the water extraction press. A quick response ensures that the press operates smoothly and without delays.
Accuracy of Pressure Control: The hydraulic system must accurately control the pressure applied during the extraction process. Inaccurate pressure control can lead to uneven pressing, resulting in increased linen damage.
An unstable hydraulic system not only has a high failure rate but also increases the likelihood of damaging the linen. Therefore, maintaining a robust and reliable hydraulic system is crucial for the overall stability of the water extraction press.
The Brand and Diameter of the Oil Cylinder: Critical for Pressure Regulation
The oil cylinder's brand and diameter are critical factors that influence the pressure applied during the water extraction process. The pressure exerted by the water bag depends on these two factors:
Cylinder Diameter: When the hydraulic system's output pressure is constant, a larger cylinder diameter results in higher pressure during water extraction. Conversely, a smaller diameter results in lower pressure. Therefore, choosing the appropriate cylinder diameter is essential for achieving the desired pressure levels.
Hydraulic System Pressure: The hydraulic system must provide sufficient pressure to the oil cylinder. When the water bag pressure is constant, a smaller cylinder diameter requires higher pressure from the hydraulic system. This demands more from the hydraulic system, necessitating robust and high-quality components.

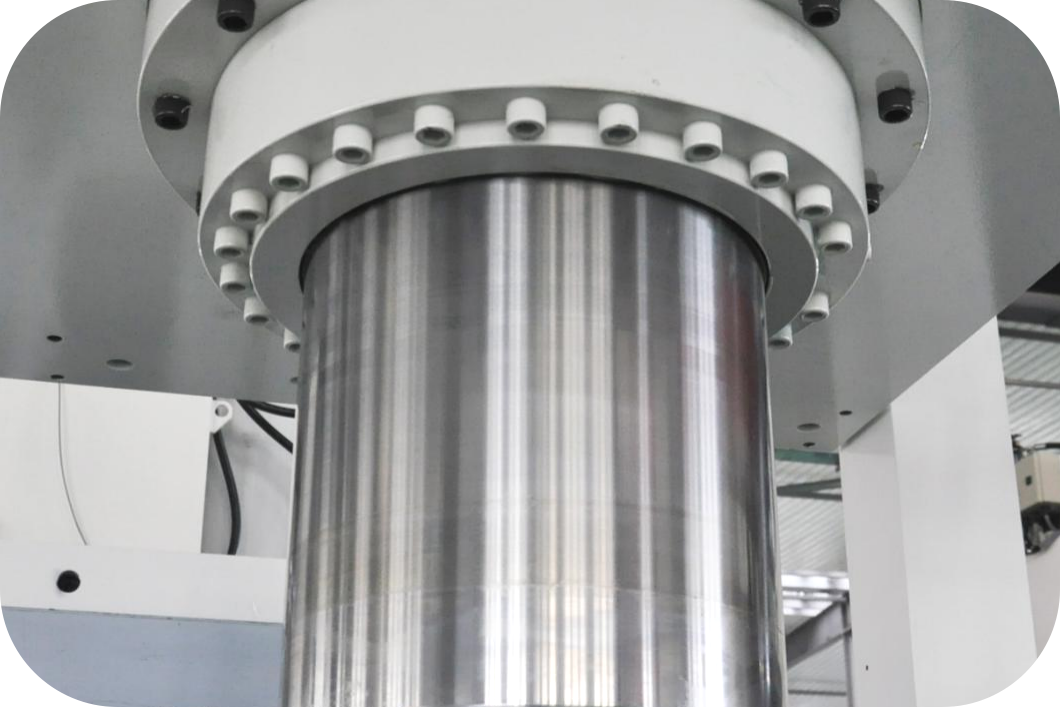

CLM's heavy-duty water extraction press is equipped with a large cylinder diameter of 410 mm, utilizing high-quality cylinders and seals. This design increases the water bag pressure while reducing the hydraulic system's operational intensity, ensuring efficient and stable performance.
The Water Extraction Basket: Ensuring Durability and Precision
The water extraction basket's quality significantly impacts the linen damage rate and the water bag's lifespan. Several factors contribute to the basket's performance:
Impact Resistance: Wet linen falls from the tunnel washer into the basket from a height exceeding one meter. The basket must withstand this impact without deforming. If the basket's strength is insufficient, it may develop slight deformations over time, affecting its performance.
Alignment of the Water Bag and Basket: Deformations in the basket can misalign the water bag and the basket. This misalignment increases friction between the water bag and the basket, causing damage to the water bag and the linen. Replacing a damaged water bag can be costly, making it essential to prevent such issues.
Gap Design: The design of the gap between the basket and the water bag is crucial. Improper gap design can trap linen, increasing damage rates. Additionally, misalignment of the oil cylinder and the basket can cause linen to get caught during the pressing action.

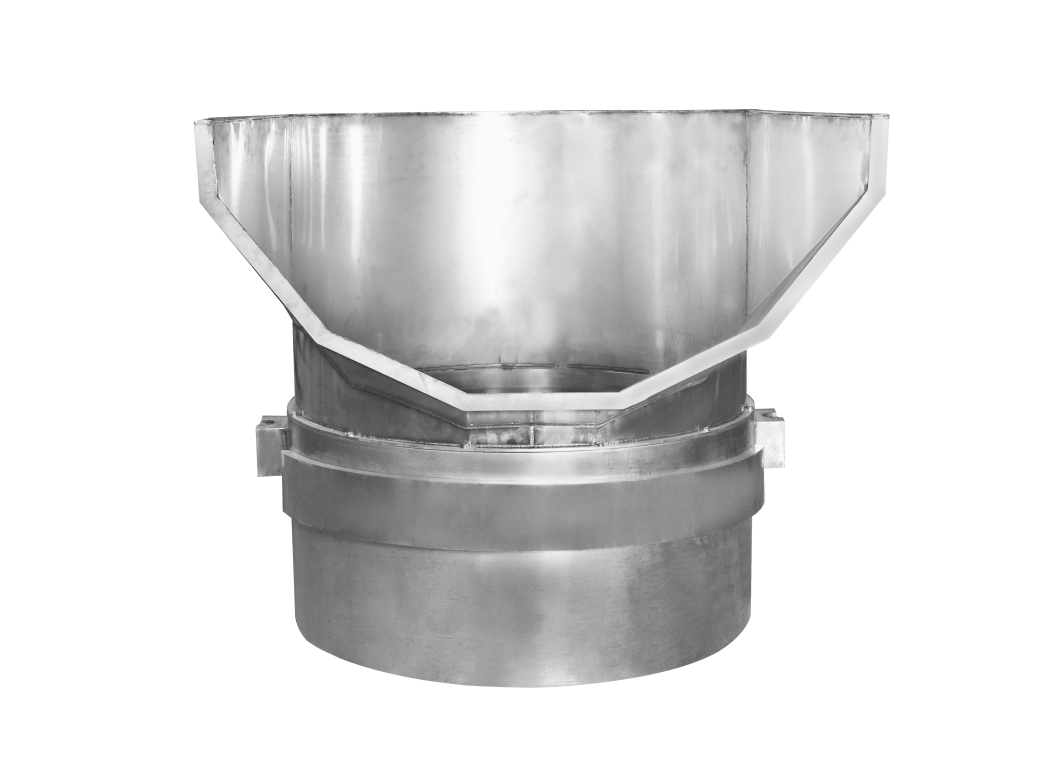

CLM's water extraction basket is constructed from 30-mm-thick stainless steel. The basket is welded after rolling, heat-treated, ground, and mirror-polished to 26 mm. This ensures that the basket does not deform, eliminating gaps and preventing linen damage. The smooth surface of the basket also minimizes wear and tear on the linen, further reducing damage rates.
Achieving Efficiency and Reducing Damage: CLM's Water Extraction Press
CLM's water extraction press combines a heavy-duty structure, stable hydraulic system, high-quality oil cylinders, and precisely manufactured water extraction baskets. This combination results in impressive performance metrics:
Dewatering Rate: The press achieves a 50% dewatering rate for towels, ensuring efficient water extraction.
Linen Damage Rate: The press maintains a linen damage rate below 0.03%, significantly reducing costs associated with linen replacement.
By focusing on the stability and efficiency of the water extraction press, CLM creates greater value for laundry factories, enhancing their operational capabilities and reducing maintenance costs.
Conclusion: The Importance of Water Extraction Press Stability in Tunnel Washer Systems
In conclusion, the stability of the water extraction press is vital for the overall performance of the tunnel washer system. By ensuring a robust hydraulic system, selecting the appropriate oil cylinder, and using a high-quality water extraction basket, CLM delivers reliable and efficient solutions for industrial laundry operations. These innovations not only enhance productivity but also minimize linen damage, contributing to the success of laundry factories worldwide.
