The direct-fired tumble dryers’ energy saving not only shows on the heating method and fuels but also on the energy-saving designs. The tumble dryers with the same appearance may have different designs.
● Some tumble dryers are direct-exhaust type.
● Some tumble dryers are heat-recovery type.
These tumble dryers will show their differences in subsequent usage.
❑ Direct-exhaust tumble dryer
After passing through the inner drum, the hot air is directly exhausted. The highest temperature of the hot air at the exhaust outlet is generally 80-90 degrees.
❑ Heat recovery tumble dryer

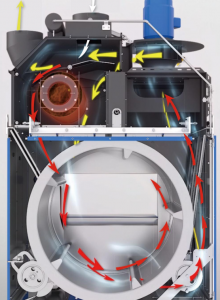

It can recycle some of the hot air discharged for the first time inside the dryer. After the hot air is filtered by the pile, it is directly returned to the barrel to be recycled, which both shortens the heating time and reduces the consumption of gas.
CLM direct-fired tumble dryers
◇ PID controllers
CLM direct-fired tumble dryers apply PID controllers to restore and recycle the hot wind, which can effectively reduce drying time and improve drying efficiency.
◇ Humidity Sensor
Also, CLM direct-fired tumble dryers have humidity sensors to monitor the drying content of the towels. By monitoring the humidity at the air outlet, people can know the drying condition of the linen so as to avoid the towel being yellow and hard. It can also reduce the waste consumption of the gas unnecessary gas consumption, saving energy in small ways.
Configuration
CLM direct-fired tumble dryers can use only 7 m3 to dry 120 kg of towels in 17 to 22 minutes.
Due to the higher drying efficiency of direct-fired tumble dryers, people can configure less direct-fired tumble dryers than steam-heated dryers when the washing amount is the same.
The general steam-heated tunnel washer system needs to configure 5 steam-heated dryers while the direct-fired tunnel washer system can be configured with 4 direct-fired tumble dryers.
