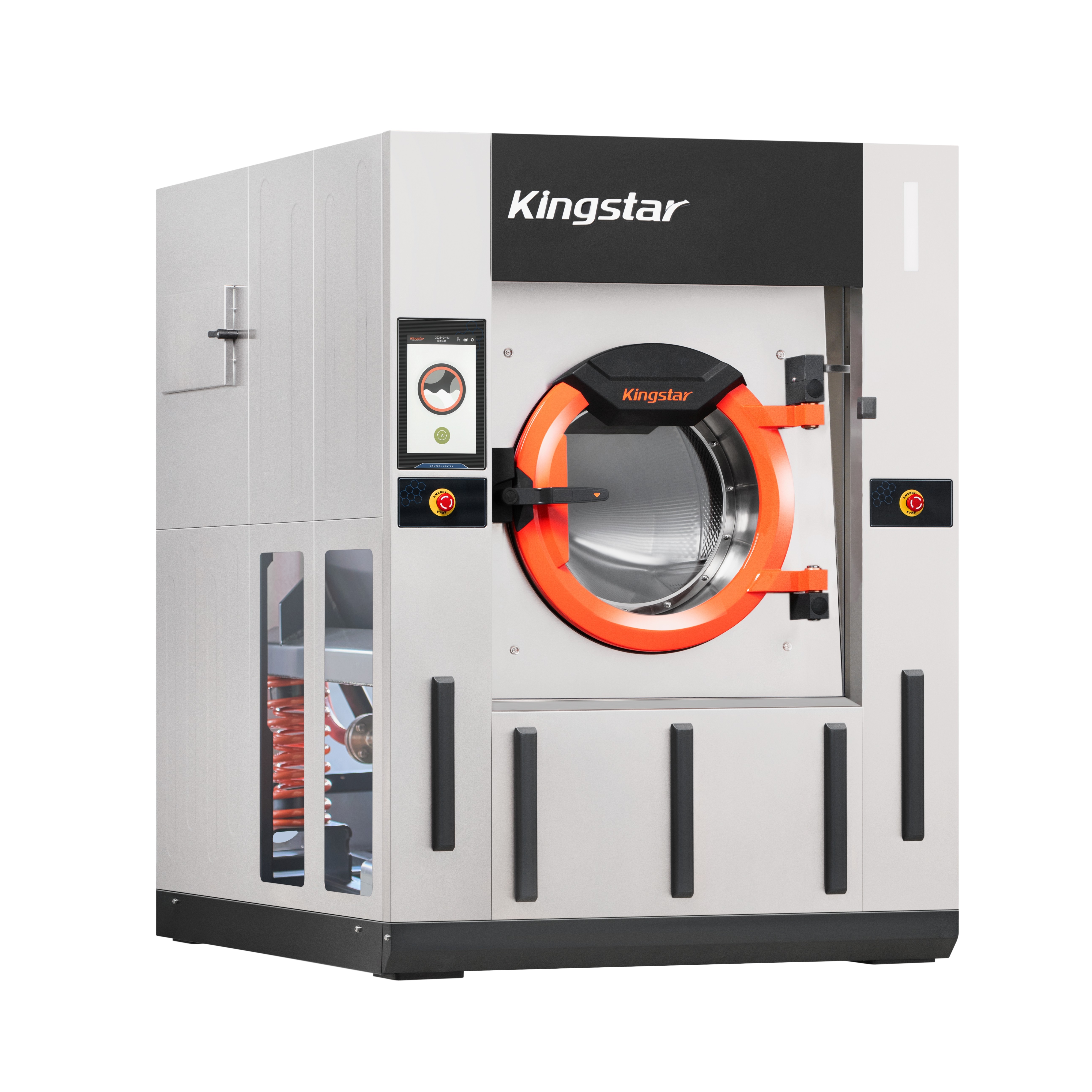

Smart High-Speed Washer
Applicable Industry:
Details Display
Control System
The computer control system can realize main programs such as automatic water addition, pre-wash, main wash, rinsing, neutralization, etc. There are 30 sets of washing programs to choose , and 5 sets of common automatic washing programs are available.
Safety
The design of oversized stainless steel clothing door and electronic door control device not only improves the safety in use, but also meets the needs of loading more linen.
Inverter
The high-quality frequency converter ensures the minimum and maximum speed, which not only ensures the washing quality, but also improves the dehydration rate.
Suspension Shock Absorption Design
The unique lower suspension shock absorption design, combined with the spring isolation base and the foot shock isolation damping, the shock absorption rate can reach 98%, and the ultra-low vibration improves the stability of the washer extractor during high-speed operation.
Rolling Feeding Port Design
The clothes feeding port of this washer extractor is processed by a special machine. The mouth surface at the junction of the inner cylinder and the outer cylinder is all designed with a crimping mouth, and the gap between the mouth and surface is small, so as to avoid the trapping of linen. It is safer to wash linen and clothes.
3-Color Indicator Light Design
The washer extractor adopts 3-color indicator light design, which can warn the equipment during operation, normal, pause and fault warning.
Intergrated Bearing Bracket
The washer extractor adopts high-quality aluminum alloy integrated bearing bracket to ensure the assembly accuracy of the shaft, as well as the effects of shock resistance, rust resistance and corrosion resistance, and is durable.
Quality Ensurance
The main drive bearings and oil seals used in this washer extractor are imported brands, which can ensure that the bearing oil seals do not need to be replaced for 5 years.
Non-rusty
The inner and outer cylinders of the washer extractor and the parts in contact with water are all made of 304 stainless steel to ensure that the washer extractor will never rust, and there will be no washing quality accidents caused by the rusting of the washer extractor.
High Efficiency
The design of large-diameter water inlet, automatic feeding system and optional double drainage can help you shorten the washing time, improve the efficiency and reduce the cost.
Technical Parameter
|
Specification Model |
SHS-2030 |
SHS-2040 |
SHS-2060 |
SHS-2100 |
SHS-2120 |
|
Operating Voltage（V/P/Hz） |
380/3/50 |
380/3/50 |
380/3/50 |
380/3/50 |
380/3/50 |
|
Maximum Washing Capacity（kg） |
30 |
40 |
60 |
100 |
120 |
|
Drum Volume（L） |
300 |
400 |
600 |
1000 |
1200 |
|
Maximum Spinning Speed（rpm） |
870 |
833 |
760 |
745 |
745 |
|
Transmission Power(kW) |
4 |
5.5 |
7.5 |
11 |
11 |
|
Steam Pressure(MPa) |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
|
Inlet Water Pressure（Mpa) |
0.2-0.4 |
0.2-0.4 |
0.2-0.4 |
0.2-0.4 |
0.2-0.4 |
|
Noise (db) |
≦70 |
≦70 |
≦70 |
≦70 |
≦70 |
|
Dehydration Factor（G) |
350 |
350 |
350 |
400 |
400 |
|
Steam Pipi Diameter（mm) |
DN25 |
DN25 |
DN25 |
DN25 |
DN25 |
|
Inlet Pipe Diameter（mm) |
DN40 |
DN40 |
DN40 |
DN50 |
DN50 |
|
Hot Water Pipe Diameter（mm) |
DN40 |
DN40 |
DN40 |
DN50 |
DN50 |
|
Drain Pipe Diameter（mm) |
DN65 |
DN100 |
DN100 |
DN100 |
DN100 |
|
Inner Drum Diameter ×Depth（mm) |
Φ820 |
Φ900 |
Φ1080 |
Φ1310 |
Φ1310 |
|
Inner Drum Depth（mm) |
570 |
660 |
680 |
750 |
970 |
|
Total Weight(Kg) |
1350 |
2200 |
2600 |
3260 |
3360 |
|
Overall Dimensions L×W×H(mm) |
1245×1480×1770 |
1360×1690×1850 |
1540×1710×2025 |
1815×2090×2390 |
1815×2310×2390 |
