TW-Y Hospital Series 60/80kg Tunnel Washers
Applicable Industry:
Details Display

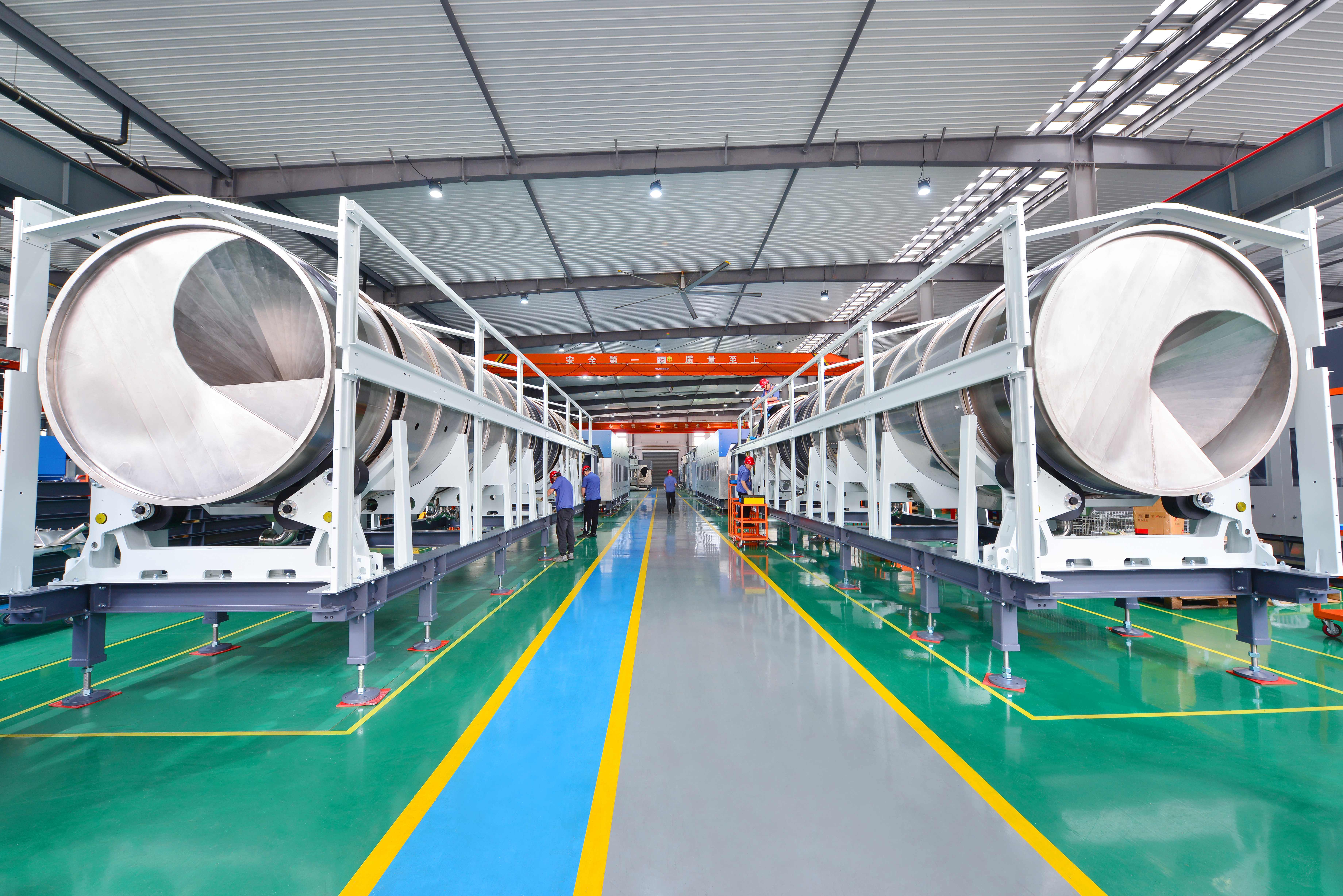

Inner Drum Material
The CLM tunnel washer's inner drum is made of 4mm high-quality 304 stainless steel, and the drum connecting flange is made of 20mm stainless steel.
Precision Machining

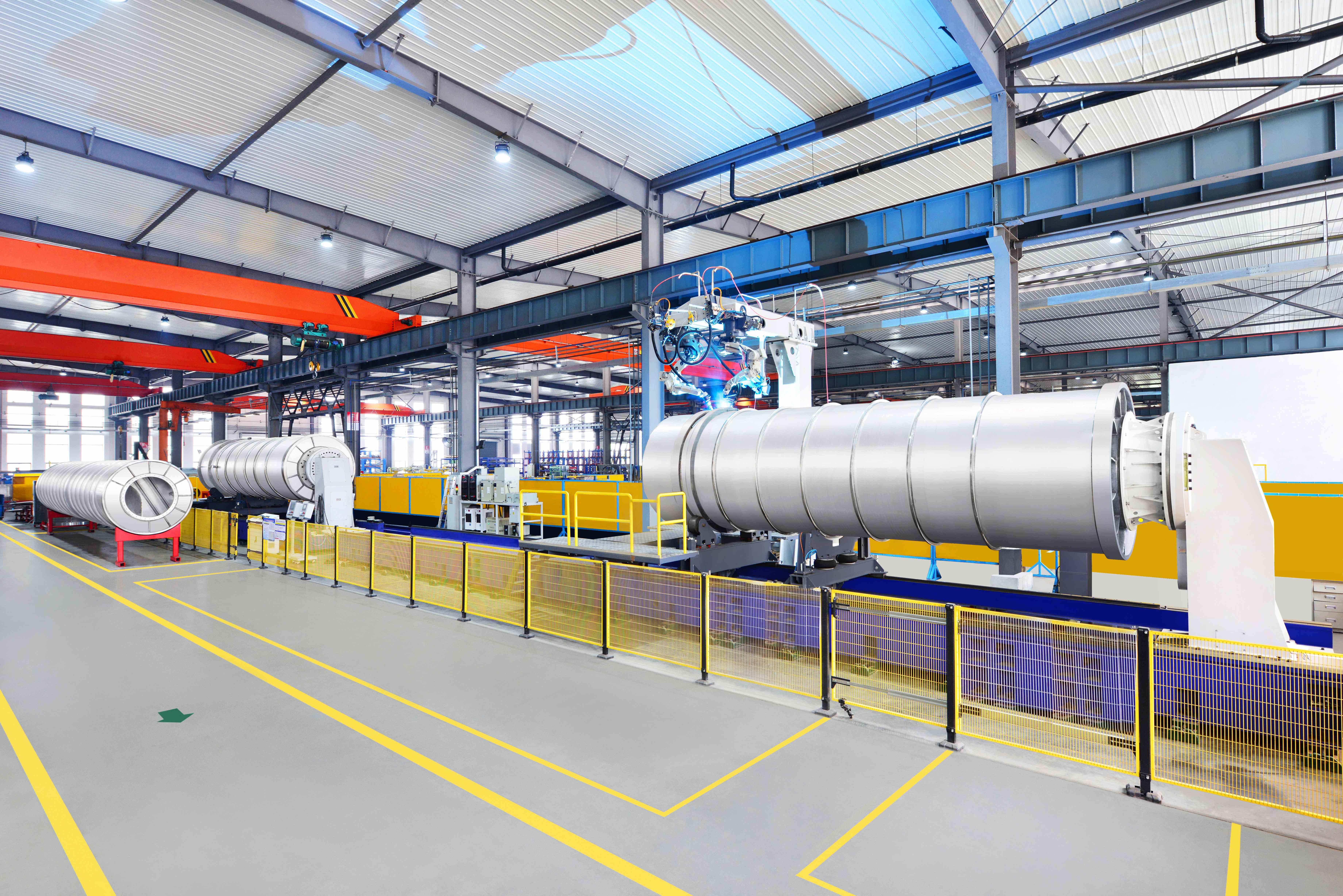

After the tunnel washers' inner drums are welded together and precisely processed by lathes, the entire drum beating is controlled within 5-10 silk.
Sealing Property
The CLM tunnel washers have good sealing performance, effectively guaranteeing no water leakage, low running noise, and stability.
Transfer Type
Bottom Transfer. It is not easy to block and damage the linen.
H-type Steel Heavy Structure Design
The bottom frame of the CLM tunnel washers is designed with a 200mm thickness H-type heavy structure steel. Not easy to deform during transportation, and the strength is good.
Hot Dip Galvanized Treatment
The bottom frame is treated with hot-dip galvanized treatment, and the anticorrosive effect is good to ensure that it will never rust.
Special Design
The CLM tunnel washer's main motor is set behind the electrical box, and the electrical box can be rotated and opened as a whole. Special design, which is convenient for the main motor CLM laundry main cage main motor is set behind the electrical box, and the electrical box can be rotated and opened as a whole. Unique design, which is convenient for main motor maintenance and further maintenance.
Circle Water Filter Device
The CLM tunnel washer's filtering device is the standard configuration. Effectively filter the lint of circulating water, ensure the clean use of circulating water, and ensure the quality of washing.
Foam And Lint Overflow Device
The floating objects during the rinsing process are discharged through the overflow port, so that the rinsing water is cleaner and the linen cleanliness is higher.
Three Points Support
The CLM tunnel washers adopt a three-point support transmission structure design, which effectively avoids the possibility of falling deformation in the middle position during long-term load operation. Because a 16-chamber tunnel washer's total length is nearly 14 meters. If two points support, it will have a deformation in the middle position of the whole structure in transportation and long-term load operation.
Counter Flow Rinsing Out Of The Drum
Counterflow rinsing to ensure that the first drum always has the cleanest water. The bottom pipeline counter flow is designed to avoid the dirty water counter flow from the hole of the transfer partition to ensure the linen is cleaned enough during the rinsing process.
Technical Parameter
|
Model |
TW-6016Y-B |
TW-6016Y-Z |
TW-6013Y-Z |
TW-6012Y-Z |
|
Chamber qty |
16 |
16 |
13 |
12 |
|
Rated Washing Capacity/Chamber（kg) |
60 |
60 |
60 |
60 |
|
Inlet Pipe Diameter |
DN65 |
DN65 |
DN65 |
DN65 |
|
Water Inlet Pressure（bar） |
2.5~4 |
2.5~4 |
2.5~4 |
2.5~4 |
|
Inlet Steam Diameter |
DN50&DN25 |
DN50&DN25 |
DN50&DN25 |
DN50&DN25 |
|
Inlet Steam Pressure (bar) |
4~6 |
4~6 |
4~6 |
4~6 |
|
Co-Air Inlet Pressure (bar) |
5~8 |
5~8 |
5~8 |
5~8 |
|
Power (kw) |
36.5 |
36.5 |
28.35 |
28.35 |
|
Voltage（V） |
380 |
380 |
380 |
380 |
|
Water Consumption（kg/kg） |
4.7~5.5 |
4.7~5.5 |
4.7~5.5 |
4.7~5.5 |
|
Electricity Consumption（kwh/h） |
15 |
15 |
12 |
11 |
|
Steam Consumption(kg/kg) |
0.3~0.4 |
0.3~0.4 |
0.3~0.4 |
0.3~0.4 |
|
Weight（kg） |
16930 |
17120 |
14890 |
14390 |
|
Dimensions（Height×Width×Depth） |
3304×2224 ×14000 |
3304×2224 × 14000 |
3304×2224 ×11820 |
3304×2224 ×11183 |
|
Diameter of cold water pipe |
DN65 |
DN65 |
DN65 |
DN65 |
|
Diameter of hot water pipe |
DN40 |
DN40 |
DN40 |
DN40 |
|
Drainage mm |
∅140 |
∅140 |
∅140 |
∅140 |
|
Model |
TW-6010Y-Z |
TW-6008Y-Z |
TW-8014Y-Z |
TW-8016Y-Z |
|
Chamber qty |
10 |
8 |
14 |
16 |
|
Rated Washing Capacity/Chamber（kg) |
60 |
60 |
80 |
80 |
|
Inlet Pipe Diameter |
DN65 |
DN65 |
DN65 |
DN60 |
|
Water Inlet Pressure（bar） |
2.5~4 |
2.5~4 |
2.5~4 |
2.5~4 |
|
Inlet Steam Diameter |
DN50 |
DN50&DN25 |
DN50&DN25 |
DN50&DN25 |
|
Inlet Steam Pressure (bar) |
4~6 |
4~6 |
4~6 |
4~6 |
|
Co-Air Inlet Pressure (bar) |
5~8 |
5~8 |
5~8 |
5~8 |
|
Power (kw) |
28.35 |
28.35 |
43.35 |
43.35 |
|
Voltage（V） |
380 |
380 |
380 |
380 |
|
Water Consumption（kg/kg） |
4.7~5.5 |
4.7~5.5 |
4.7~5.5 |
4.7~5.5 |
|
Electricity Consumption（kwh/h） |
10 |
9 |
16 |
16 |
|
Steam Consumption(kg/kg) |
0.3~0.4 |
0.3~0.4 |
0.3~0.4 |
0.3~0.4 |
|
Weight（kg） |
13400 |
12310 |
19000 |
21900 |
|
Dimensions（Height×Width×Depth） |
3200×2224 ×9871 |
3200×2245 ×8500 |
3433×2432 ×15417 |
3433×2432 ×17224 |
|
Cold Water |
DN65 |
DN65 |
DN65 |
DN65 |
|
Hot Water |
DN40 |
DN40 |
DN40 |
DN40 |
|
Drainage mm |
∅140 |
∅140 |
∅140 |
∅140 |
