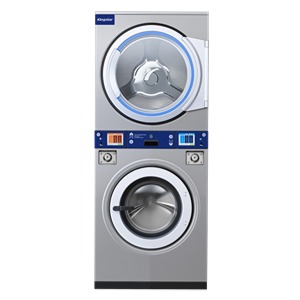

Coin-Operated Stacked Washer Dryer – Hardmount
Applicable Industry:
Details Display
Space-Saving Stacked Design
The Kingstar coin-operated stacked washer-dryer reduces floor space usage by up to 50%compared to standalone units, maximizing ROI in space-constrained laundry rooms.ldeal for self-service laundromats, schools, apartments, hotels, and more.
Intelligent Control System
Equipped with a 7-inch full-color touchscreen, the system supports over 30 languages and guides users in customizing wash-dry cycles based on fabric types and load characteristics—offering a user-friendly, intuitive experience.
Durable Inner Drum Design
The inner drum is made from high-grade 304 stainless steel, ensuring long-term corrosion resistance. This design prevents rust-related failures and protects both garments and users from damage or safety hazards.
Multiple Payment Methods
Offering convenience to users and enhanced operational flexibility for laundry service providers, while helping reduce overhead costs.
Intelligent Weighing System
The intelligent weighing function automatically adjusts water usage based on the actual load, helping minimize energy and detergent consumption while ensuring optimal washing results.
High-Efficiency Dehydration
Featuring a spin speed of 850 rpm and a 300G extraction force, the washer efficiently reduces residual moisture, which leads to shorter drying cycles and lower operational energy costs.
Efficient Lint Filtration
The specially treated lint filter effectively traps lint particles during the drying process, improving airflow and enhancing overall drying efficiency.
Advanced Energy-Saving Technology
Engineered to meet stringent commercial standards for water and energy efficiency, the system helps reduce utility costs without compromising performance. A high-efficiency heater, paired with an optimized air duct system and hot/cold air circulation, ensures rapid drying with minimal energy consumption.
Tamper-Resistant Security Design
A robust anti-pry coin control box protects revenue from theft or tampering, offering laundry operators peace of mind and enhanced property security.
Technical Parameter
|
Specification Model |
SWD-3015C(Hardmount) |
SWD-3020C(Hardmount) |
|
Power Supply (V/Ph/Hz) |
380/3/50 |
380/3/50 |
|
Washing Capacity（Kg） |
5～15 |
8～20 |
|
Washer Drum Volume (L) |
150 |
200 |
|
Wash/Spin Speed（rpm） |
30～740 |
30～690 |
|
Bottom Washer Drive Power (kW) |
1.5 |
2.2 |
|
Washer Electric Heating Power (kW) |
12 |
18 |
|
Noise Level (dB) |
≦70 |
≦70 |
|
G-factor(G) |
200 |
200 |
| Automatic Dosing Ports (pcs) |
8 |
8 |
|
Water Inlet Pressure (MPa) |
0.2～0.4 |
0.2～0.4 |
|
Gas Pressure (kPa) |
2-5 |
2-5 |
|
Water Inlet Diameter (mm/in.) |
DN20 |
DN20 |
|
Hot Water Inlet Diameter (mm/in.) |
DN20 |
DN20 |
|
Drain Pipe Diameter（mm) |
Φ76 |
Φ76 |
|
Exhaust Diameter (mm) |
150 |
150 |
|
Gas Inlet Diameter (mm) |
10 |
10 |
|
Washer Drum Diameter×Depth（mm） |
650×465 |
750×455 |
|
Dryer Drum Diameter×Depth（mm） |
750×685 |
850×640 |
|
Drying Capacity (kg) |
15 |
20 |
|
Dryer Drum Volume (L) |
300 |
360 |
|
Drying Drum Load Ratio (kg/100L) |
1:20 |
1:18 |
|
Top Dryer Main Motor Power（KW） |
0.2 |
0.37 |
|
Top Dryer Fan Motor Power（KW） |
0.2 |
0.55 |
|
Dryer Heating Type |
Electric/Gas |
Electric/Gas |
|
Top Dryer Electric Heating Power（kW） |
13.5 |
18 |
|
Width(mm) |
800 |
890 |
|
Depth（mm) |
1210 |
1180 |
|
Height(mm) |
1980 |
2140 |
|
Net Weight (kg) |
450 |
540 |
|
Screen Size (in.) |
5.7 | 5.7 |
|
Exhaust Airflow (m³/min) |
21.3 | 36.3 |
|
Gas Consumption (m³/h) |
2.17 | 2.17 |
|
Heating Capacity (BTU/hr) |
65,306 | 65,306 |
| Gas Heating Power (kW) | 19.1 | 19.1 |
| Drain Center to Floor Height (mm/in.) | 77 | 68 |
| Min. Concrete Thickness (mm/in.) | 150 | 150 |
