Sorting Folder
Applicable Industry:
Details Display
Control System (Classification Folder)
Fitted with a Mitsubishi PLC and 7-inch touch panel, it holds over 20 folding protocols and 100 client presets. Stable performance, 8-language support, optional remote troubleshooting. Integrates with CLM spreaders and ironers.
Stacking And Conveying System
Auto-sorts 5 specs of linens. Single-person bundling even at high speed. Conveyor delivers sorted items, cutting fatigue and lifting efficiency. Stacking accuracy adjustable via cylinder timing.

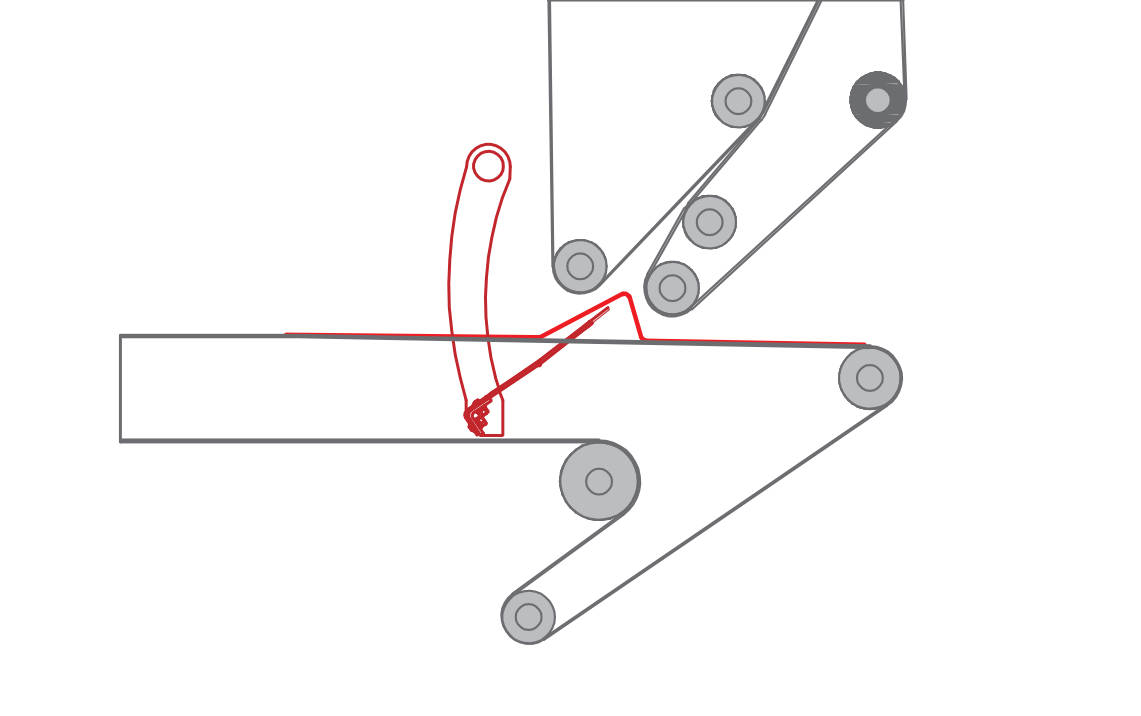

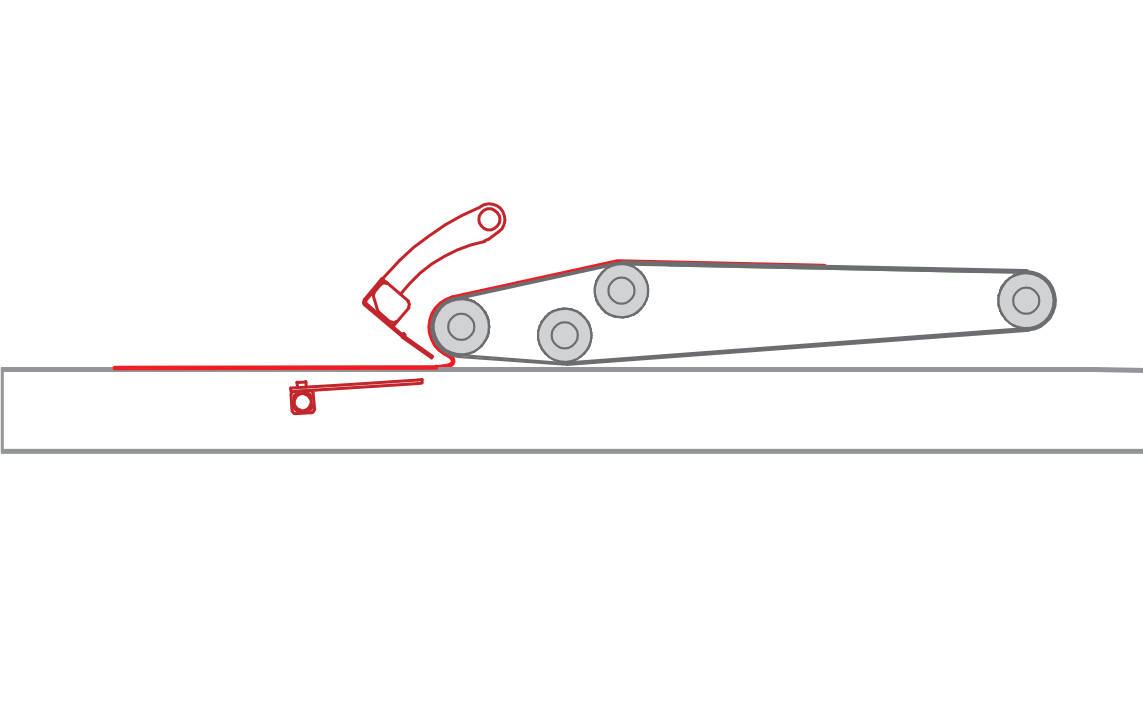

Lateral Folding
2-fold structure, max 3300/3500mm (optional). Mechanical knife design ensures quality across linen types, with one-action folding to avoid static and enable high speed.

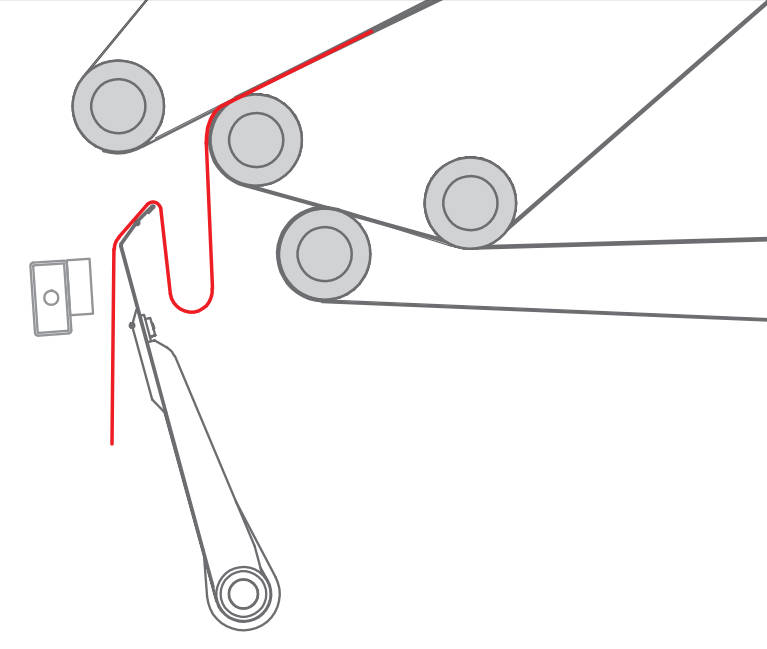

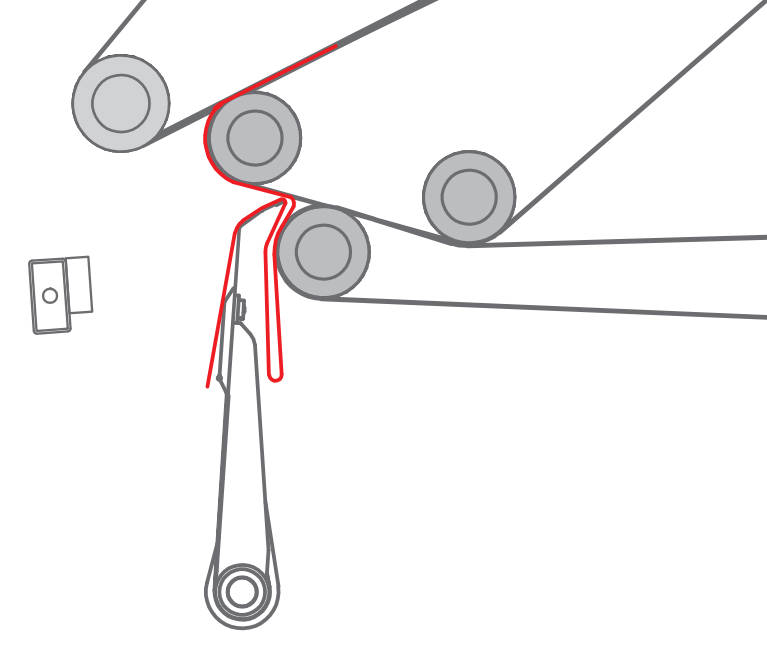

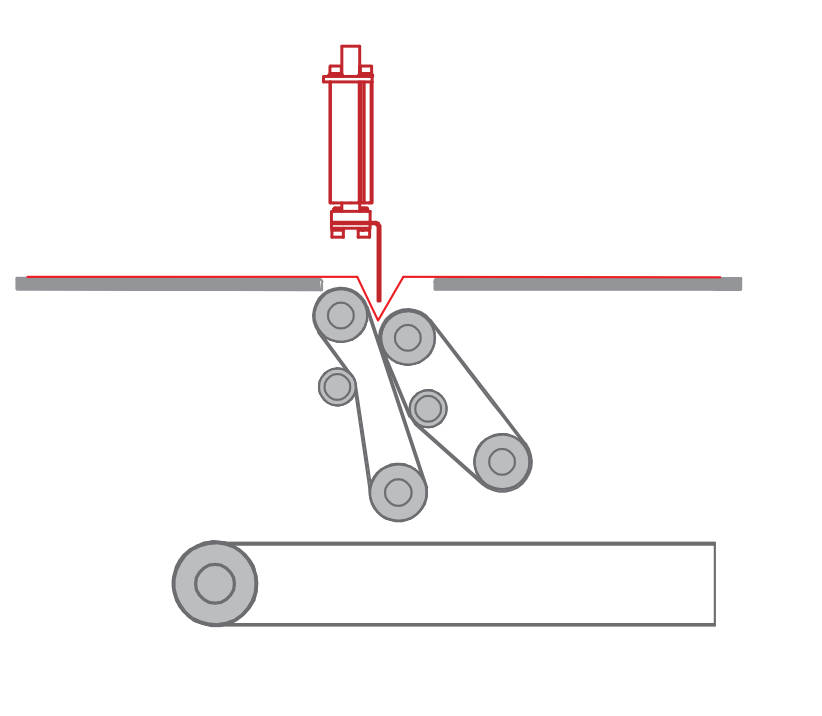

Cross Folding
3-fold structure, max 3600mm (handles oversized sheets). All mechanical knife design for neat, quality folds. First fold’s rollers separate automatically to release jams. 2nd/3rd folds are open-structured for easy troubleshooting.
Steady Structure
Welded frame with precision-processed long shafts. Max speed 60m/min (1,200 sheets/hour). All electrical, pneumatic, bearing, and motor components are imported from Japan and Europe.
Technical Parameter
|
Product Model |
FZD-3300V-4S/5S |
Remarks |
|
|
Max Folding Width (mm) |
When single-lane selected |
1100-3300 |
Bed sheets, quilt covers |
|
Classification Lanes (pcs) |
4/5 |
Bed sheets, quilt covers |
|
|
Stacking Quantity (pcs) |
1-10 |
Bed sheets, quilt covers |
|
|
Max Conveying Speed (m/min) |
60 |
|
|
|
Air Supply Pressure (Mpa) |
0.5-0.7 |
|
|
|
Compressed Air Consumption (L/min) |
450 |
|
|
|
Voltage (V/HZ) |
380/50 |
3-phase |
|
|
Connected Power (Kw) |
3.7 |
Including stacker |
|
|
Overall Dimensions (mm) Width × Depth × Height |
5670×4436×2190 |
4-stacking |
|
|
Overall Dimensions (mm) Width × Depth × Height |
5670×4436×2190 |
5-stacking |
|
|
Weight (KG) |
4200/4300 |
4/5 stackers |
|
