CLM FZD- 3300 Laundry High Speed Sheets and Quilt Sorting Folding Machine
Applicable Industry:
Details Display
Control System
(1) Precise folding requires precise control. CLM folding machine uses Mitsubishi PLC control system, 7-inch touch screen, which stores more than 20 folding programs and 100 customer information.
(2) CLM control system is mature and stable after continuous optimization and upgrading. The interface design is simple and easy to operate, and can support 8 languages.
(3) CLM control system is equipped with remote fault diagnosis, troubleshooting, program upgrade and other Internet functions. (Single machine is optional)
(4) CLM classification folding machine is matched with CLM spreading machine and high-speed ironing machine, which can realize program linkage function.
Stacking And Conveying System
(1) The CLM sorting and folding machine can automatically classify up to 5 kinds of bed sheets and quilt covers of different specifications and sizes. Even if the ironing line is running at high speed, it can also realize the binding and packing work by one person.
(2) The CLM classification folding machine is equipped with a conveyor line, and the sorted linen is automatically transported to the binding personnel to prevent fatigue and improve work efficiency.
(3) The stacking accuracy can be adjusted by adjusting the time of cylinder action and the node of cylinder action.
Horizontal Folding Function
(1) CLM classification folding machine is designed with 2 horizontal folds, and the maximum horizontal fold size is 3300mm.
(2) The horizontal folding is a mechanical knife structure, which can ensure the folding quality regardless of the thickness and hardness of the cloth.
(3) The specially designed mechanical knife structure can realize the folding mode of completing 2 folds in one action, which not only prevents static electricity, but also achieves high-speed folding efficiency.
Vertical Folding Function
(1) CLM classification folding machine is of 3 vertical folding structure. The maximum folding size of vertical folding is 3600mm. Even the oversized sheets can be folded.
(2) 3. The vertical folding is all designed for mechanical knife structure, which ensures the tidiness and quality of folding.
(3) The third vertical fold is designed with air cylinders on both sides of one roll. If the cloth is jammed in the third fold, the two rolls will automatically separate and take out the jammed cloth easily.
(4) The fourth and fifth folds are designed as an open structure, which is convenient for observation and rapid troubleshooting.

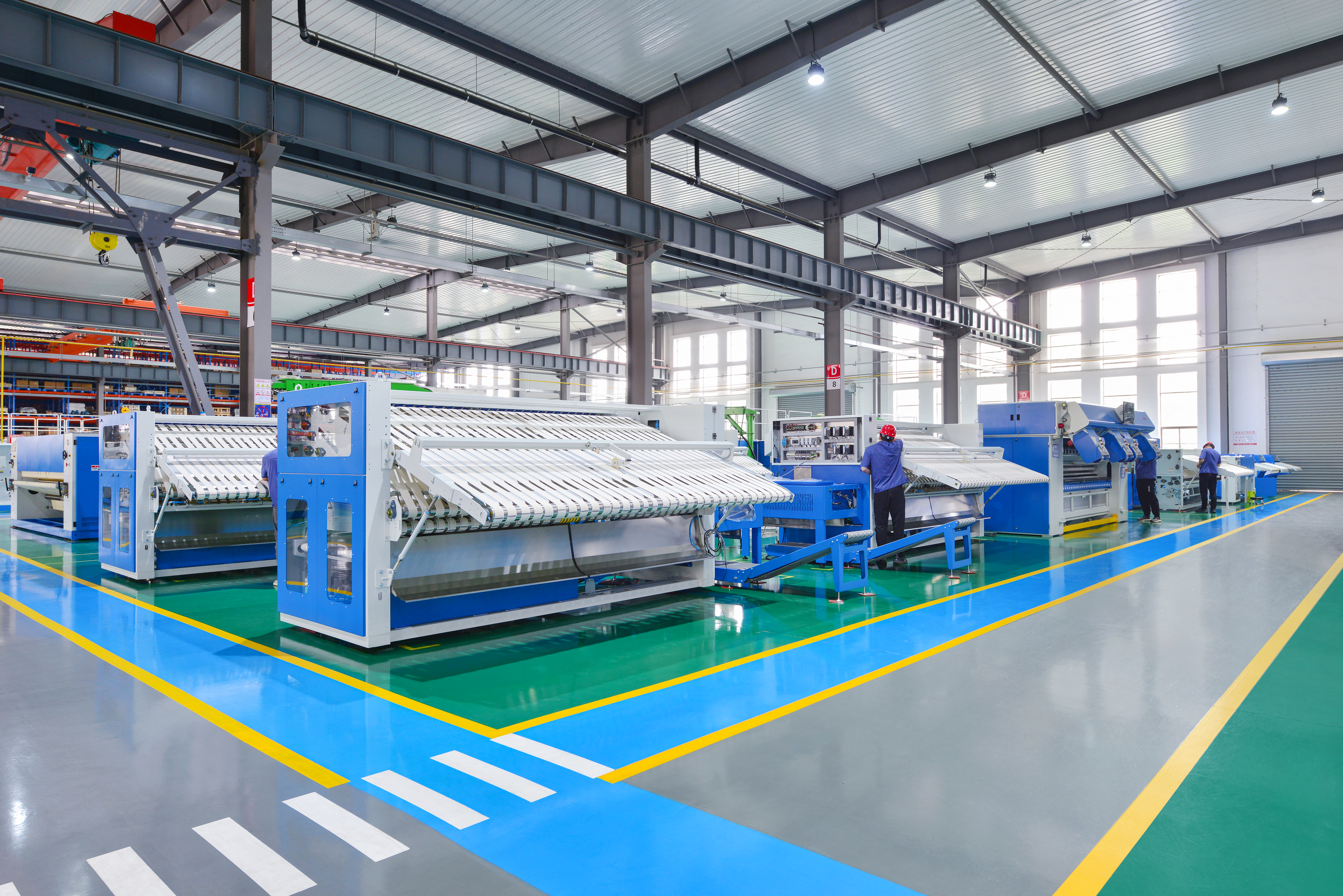

Rugged Construction

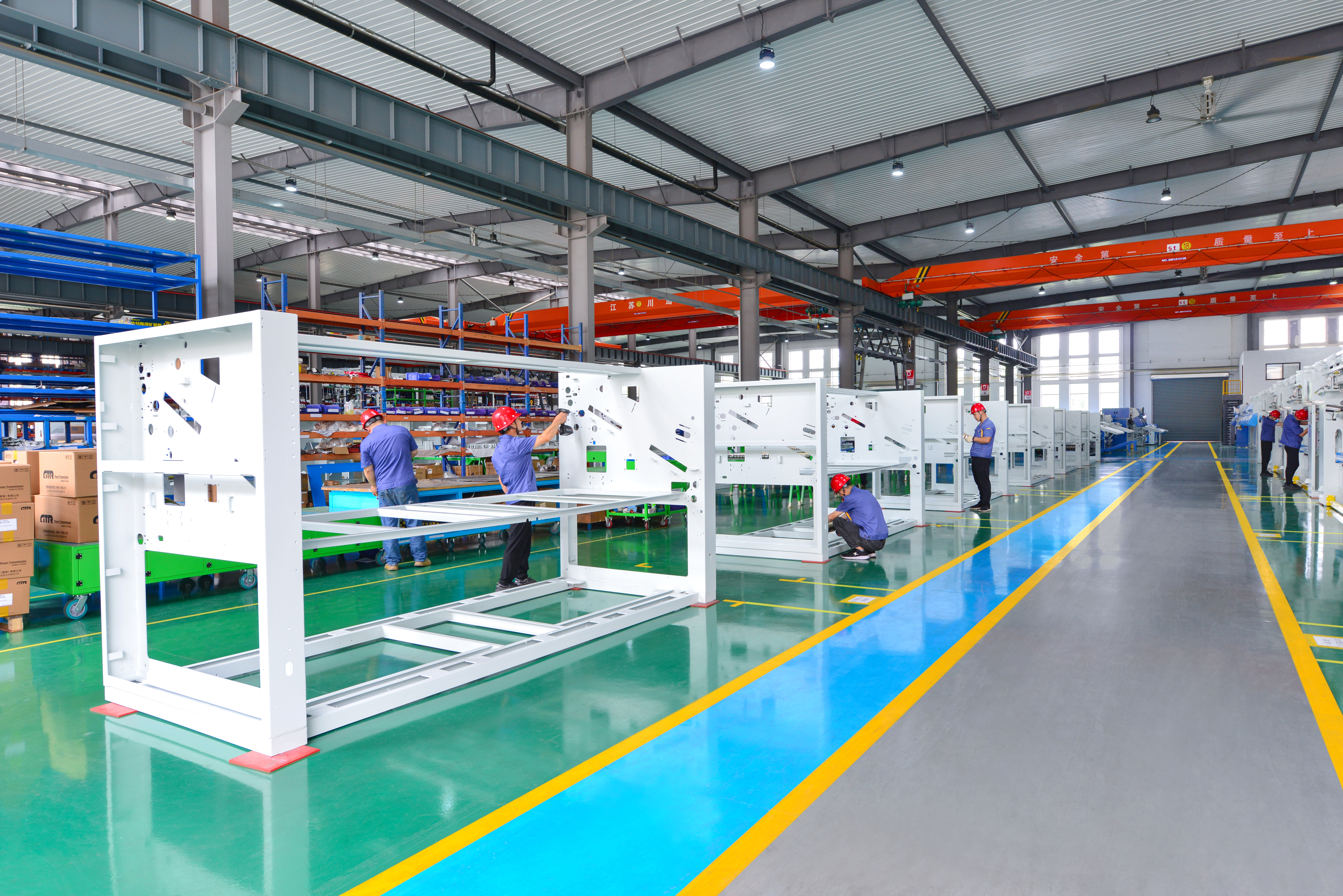

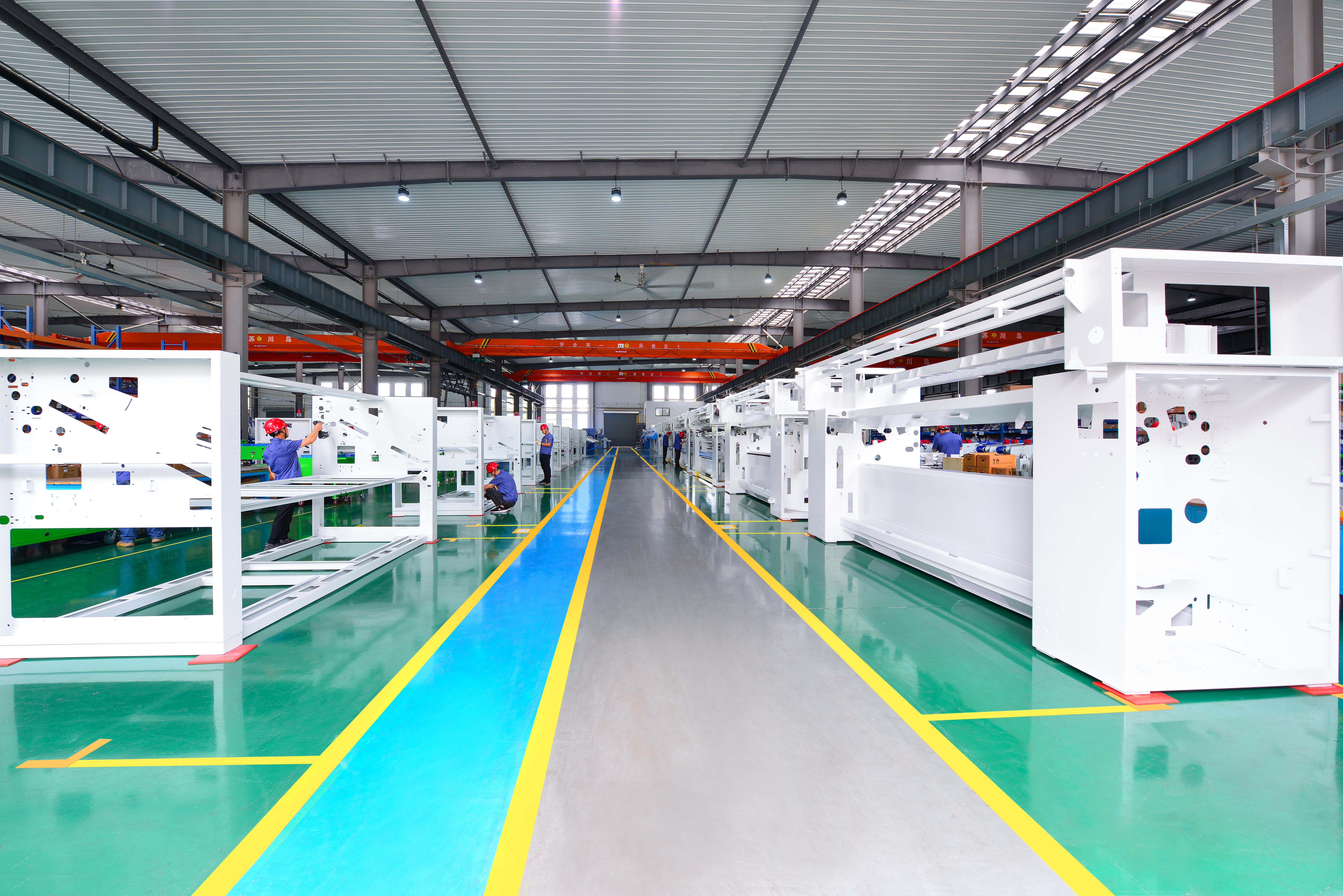

(1) The frame structure of CLM classification folding machine is welded as a whole, and each long shaft is processed precisely.
(2) The maximum folding speed can reach 60 meters/minute, and the maximum folding speed can reach 1200 sheets.
(3) All electrical, pneumatic, bearing, motor and other components are imported from Japan and Europe.
Technical Parameter
|
Model/Spec |
FZD-3300V-4S/5S |
Parameters |
Remarks |
|
MAX Folding Width（mm) |
Single lane |
1100-3300 |
Sheet&quilt |
|
Sorting lanes（Pcs） |
4/5 |
Sheet&quilt |
|
|
Stacking Quantity（Pcs） |
1~10 |
Sheet&quilt |
|
|
MAX conveying speed（m/min) |
60 |
|
|
|
Air pressure (Mpa) |
0.5-0.7 |
|
|
|
Air consumption(L/min) |
450 |
|
|
|
Voltage（V/HZ) |
380/50 |
3Phase |
|
|
Power（Kw) |
3.7 |
Including Stacker |
|
|
Dimension（mm)L×W×H |
5241×4436×2190 |
4Stackers |
|
|
5310×4436×2190 |
5Stackers |
||
|
Weight（KG） |
4200/4300 |
4/5Stackers |
|
