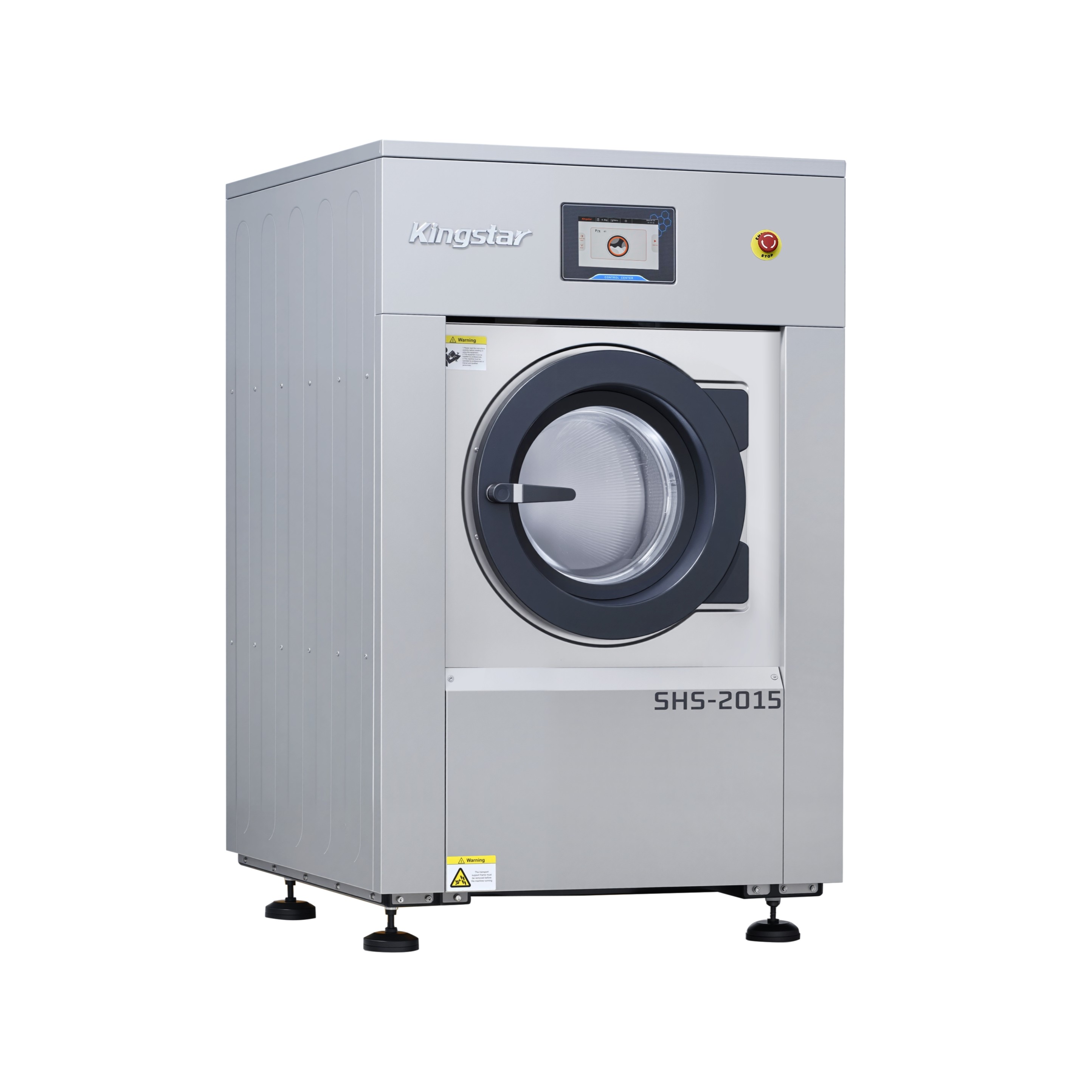

Standard Washer
Applicable Industry:
Details Display
Quality Ensurance
Electric components are all famous brands.The inverter is customized by Mitsubishi. The bearings are Swiss SKF, circuit breaker, contactor, and relay are all the French Schneider brand. All wires, other components, etc. are imported brands.
High- Efficiency
Using 2-way water mouths design, large size drainage valve, etc., improve efficiency and reduce costs.
Mitsubishi Inverter
Computer boards, inverters, and main motors adopt 485 communication connections. The communication efficiency is faster and more stable.
Intelligent Leading Washing System
Intelligent leading washing system, 10-inch full color touch screen, simple and easy operation, automatic adding detergent, and one-click to easily complete the entire washing process.
Italian Customized Inner Drum Processing Machine
The inner drum and the outer cover are made by moudles and Italian customized inner drum process machine. The welding-free technology makes the inner drum higher strength and the quality is more stable in the mass production.
Diamond Mesh Design &304 Stainless Steel
Inner drum mesh is designed with 3mm bore diameter , effectively improve the washing rate of clothes, and do not hang zipper, buttons, etc., and the washing is safer.
The inner drum, outer cover and all parts which contact water are all used in 304 stainless steel to ensure that the washing machine is never rusting, and it will not cause the washing quality and accidents due to rust.
Suspension Shock Absorption Design
KingStar washer extractor can work on any floor without having to do the foundation. Suspended spring shock absorption structure design, German brand damping device, ultra -low vibration.
Automatic Detergent Distribution System
The optional automatic detergent distribution system can be selected for 5-9 cups, which can open the signal interface of any brand distribution device to achieve accurate putting detergent, reduce waste, save artificially, and have more stable washing quality.
Main Drive -swiss Skf Triple Bearings
The main transmission uses a 3 bearing design, which is high in strength, which can ensure 10 years maintenance free.
The door control is designed for electronic door locks. It is controlled by the computer program. It can only open the door to take clothes to avoid accidents after being completely stopped.
The main motor is customized by a domestic listed company.The maximum speed is 980 rpm, the washing and extraction performance is excellent, the super extraction rate, reduce the drring time after washing, effectively saving the energy consumption.
Technical Parameter
|
Specification Model |
SHS-2012 |
SHS-2015 |
SHS-2020 |
SHS--2025 |
|
Operating Voltage（V/P/Hz） |
380/3/50 |
380/3/50 |
380/3/50 |
380/3/50 |
|
Washing Capacity（Kg） |
5～12 |
5～15 |
8～20 |
8～25 |
|
Drum Volume（L） |
120 |
150 |
200 |
250 |
|
Washing/Spinning Speed（rpm） |
30～850 |
30～850 |
30～850 |
30～850 |
|
Transmission Power(kW) |
1.5 |
1.5 |
2.2 |
3 |
|
Electrical Heating Power(kW) |
12 |
18 |
18 |
18 |
|
Noise(db) |
≤70 |
≤70 |
≤70 |
≤70 |
|
Extraction Factor（G) |
300 |
300 |
300 |
300 |
|
Automatic Dosing Ports (ways) |
9 |
9 |
9 |
9 |
|
Steam Pressure(MPa) |
0.2～0.4 |
0.2～0.4 |
0.2～0.4 |
0.2～0.4 |
|
Inlet Water Pressure（Mpa) |
0.2～0.4 |
0.2～0.4 |
0.2～0.4 |
0.2～0.4 |
|
Inlet Pipe Diameter（mm) |
DN20 |
DN20 |
DN20 |
DN20 |
|
Hot Water Pipe Diameter（mm) |
DN20 |
DN20 |
DN20 |
DN20 |
|
Drain Pipe Diameter（mm) |
Φ76 |
Φ76 |
Φ76 |
Φ76 |
|
Inner Drum Diameter ×Depth（mm) |
Φ650×372 |
Φ650×465 |
Φ750×457 |
Φ750×566 |
|
Overall Dimension (mm) |
890×885×1480 |
890×1077×1480 |
980×1050×1570 |
980×1160×1570 |
|
Total Weight(Kg) |
400 |
420 |
480 |
500 |
