TW-J Hotel Series 60kg/80kg Tunnel Washers

Short Description:

High cleanliness: meet the washing quality of a five-star hotel.

Energy-saving: The minimum water consumption for washing per kg of linen is only about 5 kg

Good stability: The tunnel washers and water extraction presses are designed with heavy structures, and the electrical components are well-known brands.

Applicable Industry: Hotel, Hospital.

Applicable Industry:

Send email to us Product Video

Product Detail

Details Display

Inner Drum Material

The inner drum is made of 4 mm-thick premium 304 stainless steel, offering superior strength and deformation resistance compared to similar European and American products.

Precision Machining

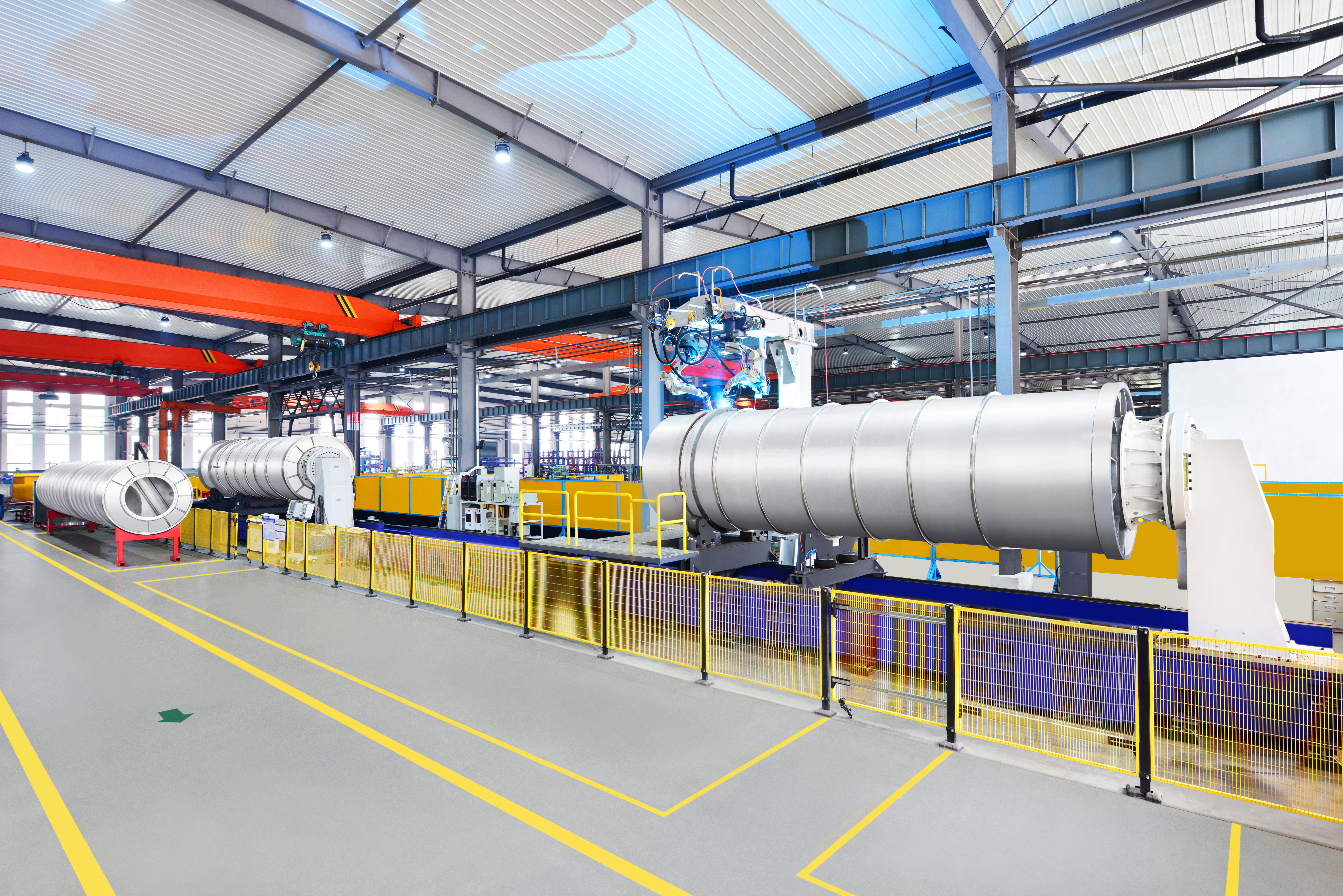

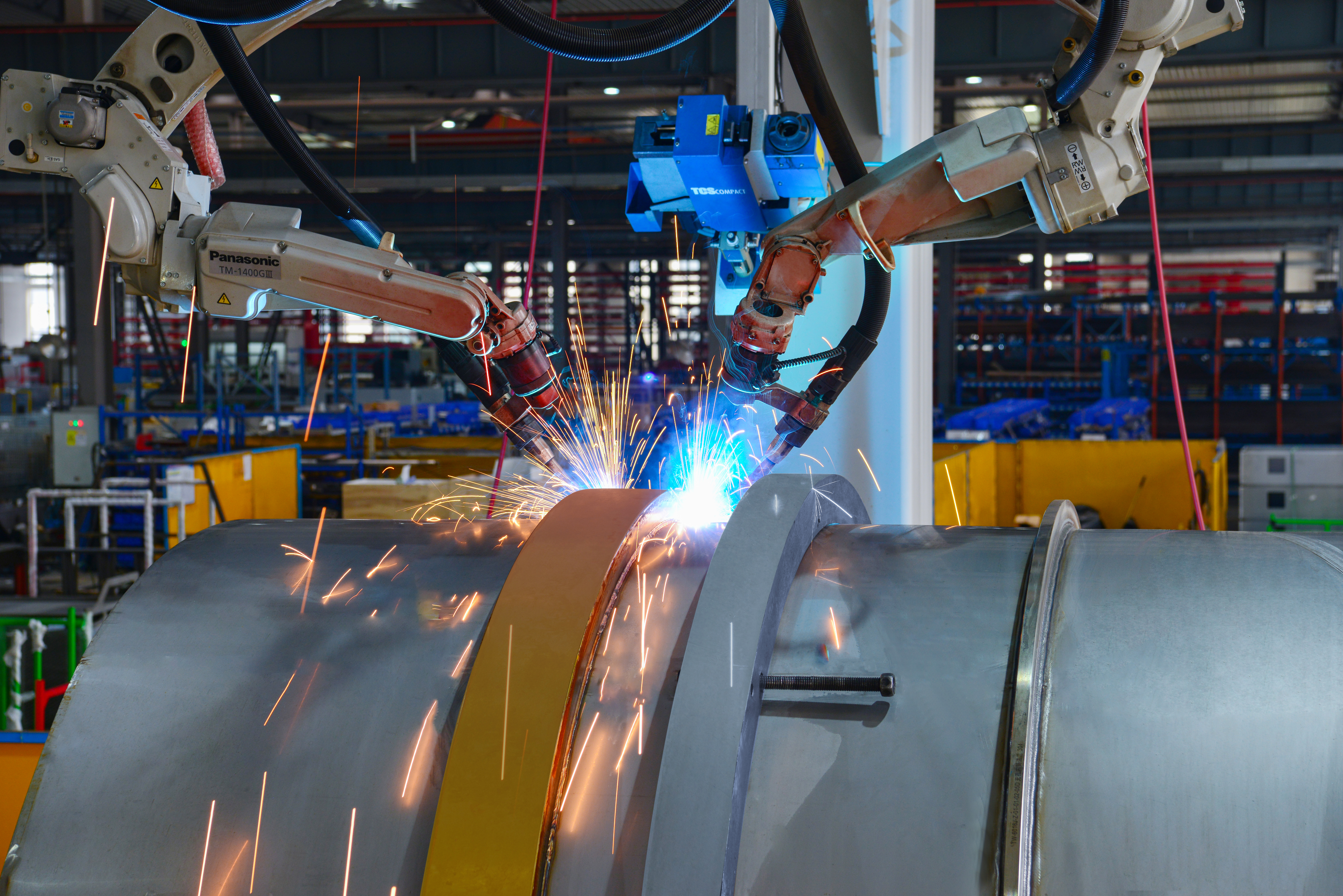

After the inner drums are welded together and the precision processing of CNC lathes, the entire inner drum line bounce is controlled in 30 dmm. The sealing surface is treated with a fine grinding process.

Sealing Property

The tunnel washer's body has good sealing performance. It effectively guarantees no leakage of water and extends the service life of the sealing ring, also ensuring stable running with low noise.

Trasnfer Type

The bottom transfer of the CLM tunnel washer brings a lower blocked and linen damage rate.

H-type Steel Heavy Structure Design

Frame structure adopts the heavy-duty structure design with 200*200mm H-type steel. With high intensity, so that it is not deformed during long-time handling and transportation.

Foam And Lint Overflow Device

The design of the unique patented circulating water filter system can effectively filter the lint in the water and improve the cleanliness of rinse and recycling water, which not only saves energy consumption but also effectively guarantees the quality of washing.

Foam And Lint Overflow Device

Each compartment of rinsing has an independent water inlet and drain valves.

Technical Parameter

Model	TW-6016J-B	TW-6016J-Z	TW-6013J-Z	TW-6012J-Z	TW-6010J-Z	TW-6008J-Z	TW-8014J-Z	TW-8016J-Z
Chamber qty	16	16	13	12	10	8	14	16
Rated Washing Capacity/Chamber（kg)	60	60	60	60	60	60	80	80
Inlet Pipe Diameter	DN65	DN65	DN65	DN65	DN65	DN65	DN65	DN60
Water Inlet Pressure（bar）	2.5~4	2.5~4	2.5~4	2.5~4	2.5~4	2.5~4	2.5~4	2.5~4
Inlet Steam Diameter	DN50&DN25	DN50&DN25	DN50&DN25	DN50&DN25	DN50	DN50&DN25	DN50&DN25	DN50&DN25
Inlet Steam Pressure (bar)	4~6	4~6	4~6	4~6	4~6	4~6	4~6	4~6
Co-Air Inlet Pressure (bar)	5~8	5~8	5~8	5~8	5~8	5~8	5~8	5~8
Power (kw)	36.5	36.5	28.35	28.35	28.35	28.35	43.35	43.35
Voltage（V）	380	380	380	380	380	380	380	380
Water Consumption（kg/kg）	4.7~5.5	4.7~5.5	4.7~5.5	4.7~5.5	4.7~5.5	4.7~5.5	4.7~5.5	4.7~5.5
Electricity Consumption（kwh/h）	15	15	12	11	10	9	16	16
Steam Consumption(kg/kg)	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4
Weight（kg）	16930	17120	14890	14390	13400	12310	19000	21900
Dimensions（Height×Width×Depth）	3304×2224 ×14000	3304×2224 × 14000	3304×2224 ×11820	3304×2224 ×11183	3200×2224 ×9871	3200×2245 ×8500	3433×2432 ×15417	3433×2432 ×17224
Cold Water	DN65	DN65	DN65	DN65	DN65	DN65	DN65	DN65
Hot Water	DN40	DN40	DN40	DN40	DN40	DN40	DN40	DN40
Drainage mm	∅140	∅140	∅140	∅140	∅140	∅140	∅140	∅140
