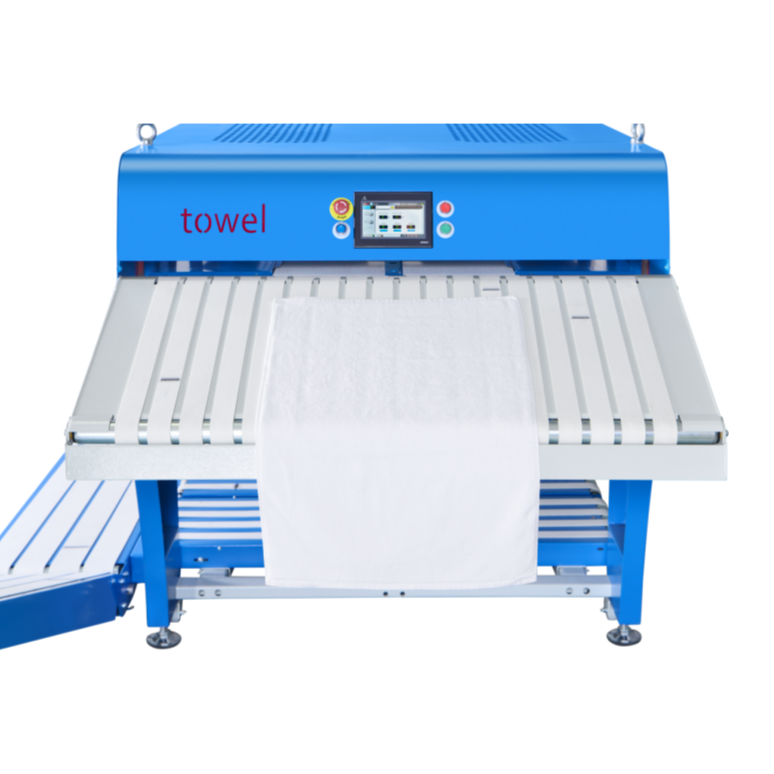

Air Blowing Towel Folder

Short Description:

A more cost-effective towel folder

The folding is mainly carried out by pulsed air. Before the linen is completely inserted into the first fold, the machine automatically measures the length of the linen. Based on this, many folding patterns can be selected. The folding plate automatically puts the linen into the correct position, and the air nozzles of the folding spray air turn the linen on the folding plate.

Applicable Industry:

Send email to us Product Video

Product Detail

Details Display

Technical Features

1. The towel folder is adjustable in height to meet the needs of operators of different heights. The feeding platform is lengthened to make the longer towel have better adsorption.

2. S. Towel folder can automatically classify and fold various towels. For example: bed sheets, clothing (T-shirts, nightgowns, uniforms, hospital clothing, etc.), laundry bags, and other dry linen, the maximum folding length is up to 2400mm.

3. Compared with similar equipment, S.towel has the fewest moving parts, and all of them are standard parts. In addition, the new towel folding machine has better adjustability when replacing the drive belt.

4. All electrical, pneumatic, bearing, motor, and other components are imported from Japan and Europe.

Technical Parameter

Maximum Folding Size	S.towel Air L: 240 × 120 cm S.towel Air S:190 × 120 cm
Air Compressor	6 bar
Air Consumption	8-20 M³ /hour
Air Supply Pipe Diameter	≥ф 16 mm
Power Supply Requirements	3 phase 400 50/60HZ, or 3 phase 230V 50/60HZ, or single-phase 230V 50/60HZ
Power Consumption	0-2KWh
Length (excluding/including the rear discharge platform)	1396/1919mm
Height	1430mm
Weight	1100KG
