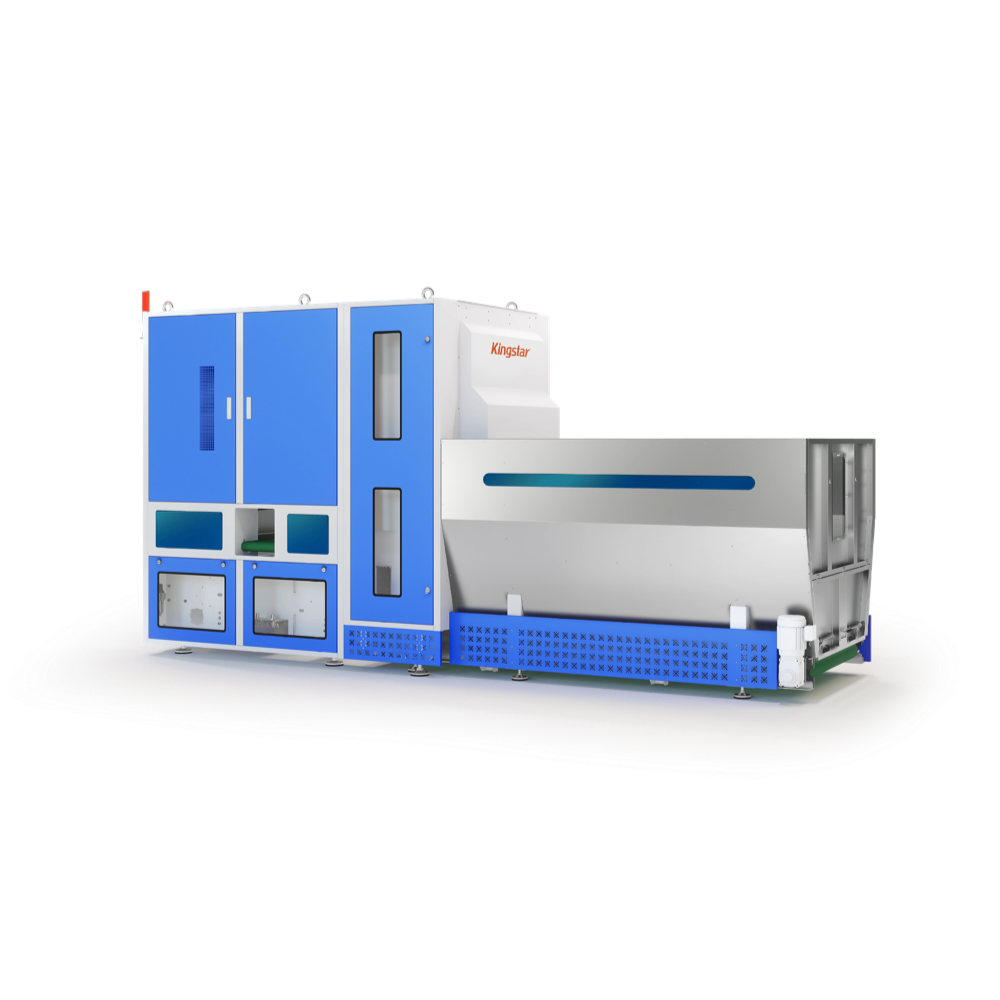

Kingstar Standalone Picking Machine
Applicable Industry:
Details Display
Stable Operation
The machine features a fully welded frame with precision-machined components. Servo drives, servo motors, and electrical components from well-known brands enhance machine stability.
High Efficiency
It can automatically pick, separate, and transport linen to the conveying platform. This reduces operators’ workload and improves overall efficiency.
Premium Quality
Electrical components are sourced from reputable brands.
High-Speed & High-Quality Picking Performance
Two-stage servo-driven robotic arms detect and pick up linen intelligently for precise and efficient operation.Equipped with a Mitsubishi PLC control system, it features fast response, high reliability, strong anti-interference capability, and simple programming. Suitable picking parameters can be configured based on different linen materials and types to improve operating performance. They can be adjusted to achieve suitable working speed.
Stable Operation & Easy-To-Operate
The machine features a fully welded frame with precision-machined components. Servo drives, servo motors, and electrical components from well-known brands enhance machine stability.Two-stage servo-driven robotic arms ensure more thorough linen sorting. It has low installation requirements and can be placed anywhere in the workshop. The interface features a user-friendly design for easy operation, with remote diagnosis and troubleshooting functions.
Strong Adaptability
It can be widely used in the industrial laundry industry, such as hospitals, hotels, railways, and schools.Flexible feeding methods meet different application requirements. It can be used with overhead bags and conveyor lines. Flexible feeding methods meet different application requirements. It can be used with overhead bags and conveyor lines. Flexible clamping structure can automatically adjust based on linen thickness. It is easy to operate and can quickly handle abnormal conditions.
Time-Saving & Labor-Saving
The standalone picking machine can automatically pick and separate stacked or bundled linen. Two-stage sorting ensures more thorough separation. This significantly reduces operators’ workload and improves working efficiency.
Technical Parameter
|
Model |
JS-60D-00 |
|
|
Compressed Air |
Pressure |
0.6MPa |
|
Usage |
50 (ANR) L/min |
|
|
Compressed Air Connections |
Ø12 Connection |
|
|
Power Supply |
3-Phase, 5-Wire AC 380 V |
|
|
Maximum Electrical Capacity |
6.8KW |
|
|
Dimensions |
D |
4905 |
|
W |
1558 |
|
|
H |
2396 |
|
|
Operating Mode |
Robotic arms, conveyor belts |
|
|
Machine Weight |
3100kg |
|
|
Handling Items |
Sheets, duvet covers, and tablecloths |
|
|
Maximum Processing Capacity |
900 pcs/h |
|
