Single（Double）Lane Double Stack Folder

Short Description:

Max operating speed 60m/min, up to 1,200 bed sheets folded per hour;
Smooth operation with low rejection rate;
Dual stacking, automatically classifies linen by size, folds and stacks;
Each vertical fold is driven by a separate motor to ensure folding precision;
Max horizontal folding size: 3300mm or 3500mm;
All electrical, gas, bearing, motor and other components are imported.

Applicable Industry:

Send email to us Product Video

Product Detail

Details Display

Control System

Equipped with a Mitsubishi PLC and 7-inch touchscreen, it stores over 20 folding routines and 100 customer configurations. The system is mature and stable, supports 8 languages, and offers optional remote capabilities like fault diagnosis. It also enables program synchronization with CLM spreading feeders and ironers.

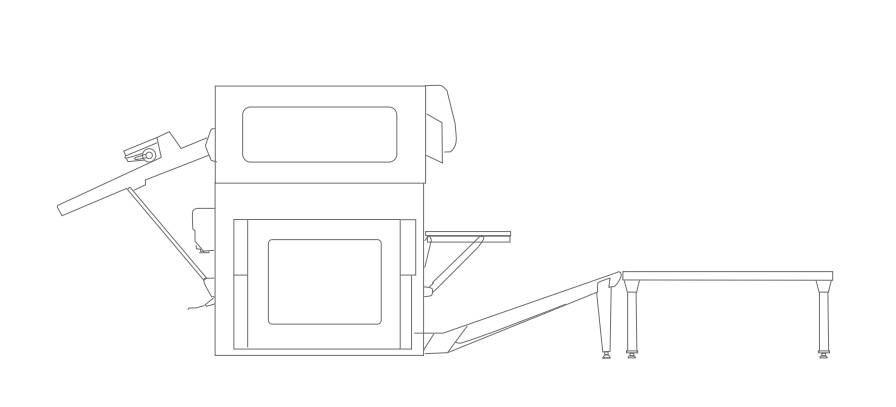

Double-Stack Conveying System

Automatically classifies, folds, and stacks linen by size (boosts efficiency, saves labor).
Standard stacking system (no frequent bending, adjustable quantity). Non-powered roller conveyor prevents jams.

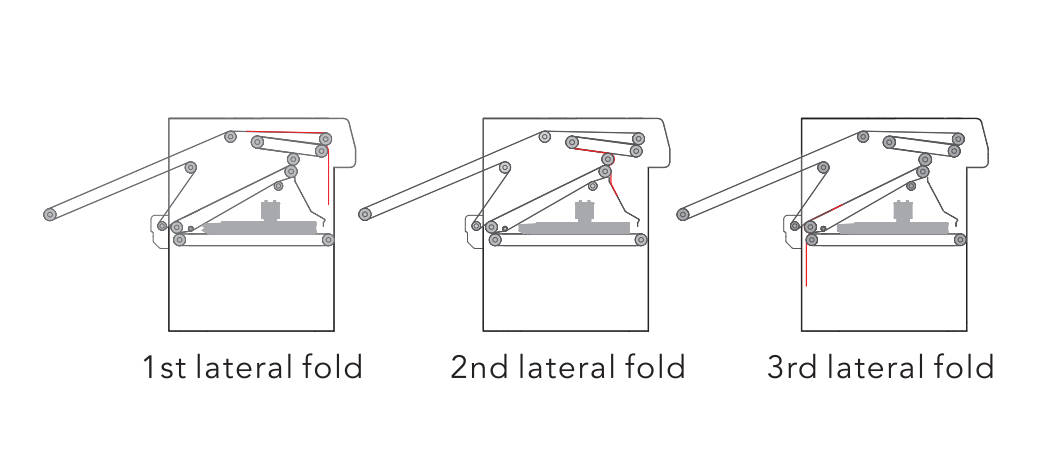

Lateral Folding

This folder has 2/3 lateral folds (max 3300/3500mm, optional). Air-blade structure (adjusts blowing time for linen thickness/weight). Air-stripping devices prevent static issues and jams, ensuring quality.

Stable Construction

Features a welded frame and precision-machined long shafts. Reaches a top speed of 60m/min (up to 1,200 sheets folded hourly). Critical components—electrical parts, pneumatics, bearings, and motors—are all imported from regions like Japan and Europe.

Technical Parameter

Product Model	Single-Lane Dual-Stacker		Dual-Lane Dual-Stacker		Remarks
	S6-3300-VI60-2S		S6-3500VI-2L2S-C
Maximum Folding Width (mm)	When single-lane selected	1100-3300	When single-lane selected	1100-3500	Bed sheets, quilt covers
			When dual-lane selected	1100-1700
	When dual-lane selected	350-700	When four-lane selected	350-700	Pillowcases (2 folds)
Stacking Quantity (pcs)	1-20		1-20		Bed sheets, quilt covers
Pillowcase Passing Quantity (pcs)	1-4		1-4		Pillowcases
Maximum Conveying Speed (m/min)	60		60
Air Supply Pressure (Mpa)	0.5-0.7		0.5-0.7
Compressed Air Consumption (L/min)	450		450
Voltage (V/HZ)	380/50		380/50		3-phase
Connected Power (Kw)	3.7		4.9		Including stacker
Overall Dimensions (mm) Width × Depth × Height	5650×5540×1950		6060×5540×1950		Including stacker
Weight (Kg)	3600		4000		Including stacker
