Single-Lane Single-Stacker Folder
Applicable Industry:
Details Display
Control System
Mitsubishi PLC, 7-inch touch screen, 20+ folding programs, 100+ customer profiles.
Stable, 8-language interface, optional remote functions.
Links with CLM spreaders/ironers.
Stacking & Conveying System
Standard stacking: boosts efficiency, saves labor (no frequent bending), adjustable quantity. Unpowered roller conveyor prevents jams if operators leave.

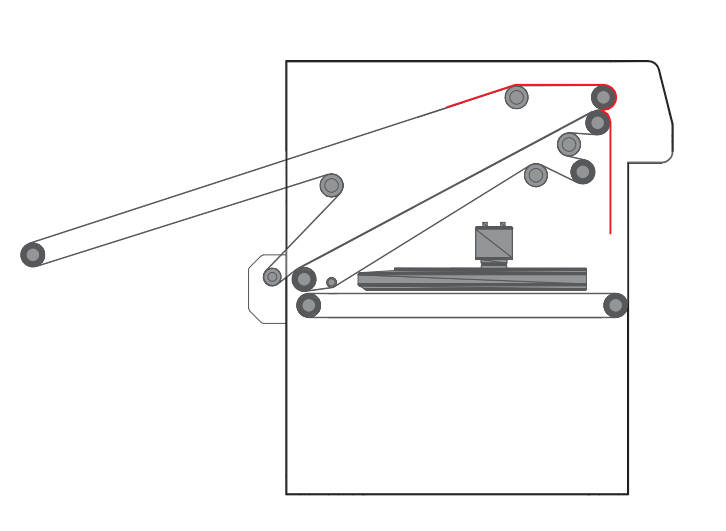

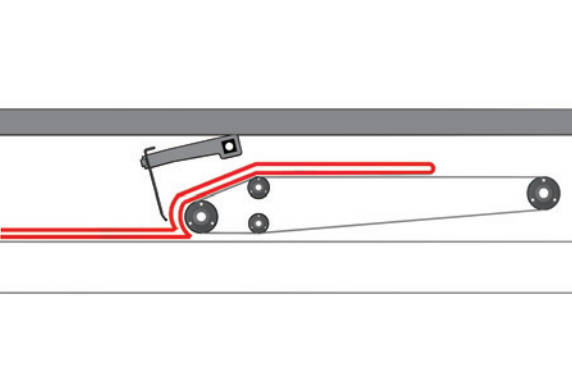

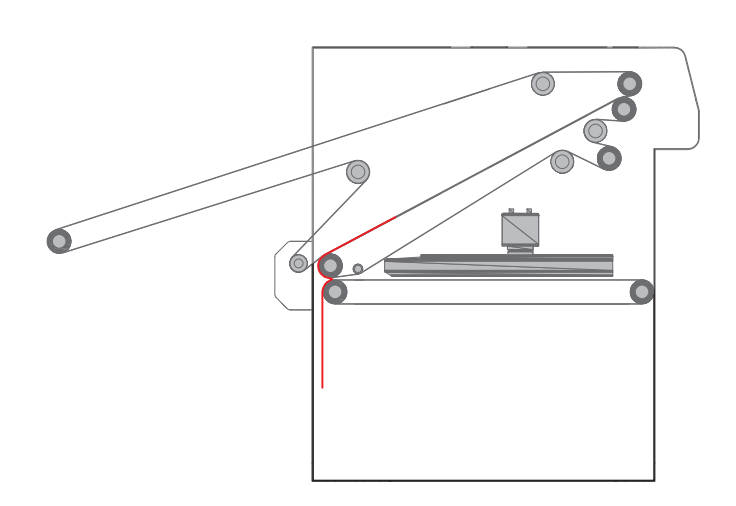

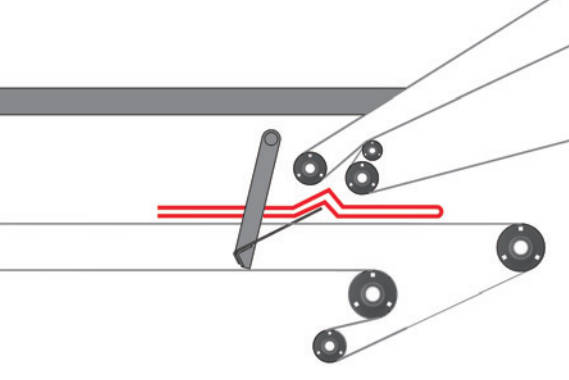

Lateral Folding
2/3 folds (max 3300/3500mm, model optional). Air-knife (adjustable blowing) and air separation prevent static issues/jams, ensuring quality.

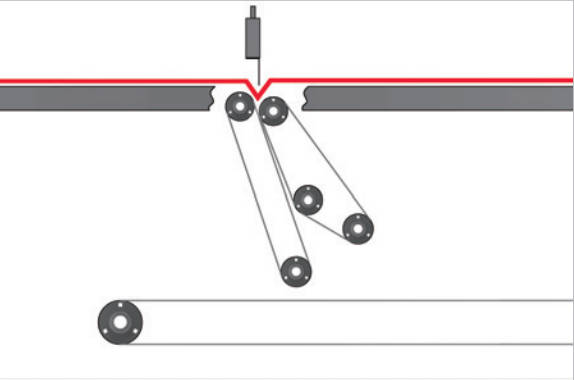

Cross Folding
3 vertical folds (max 3600mm for oversize sheets). Knife-fold for neatness; first fold has air cylinders (releases jams); 2nd/3rd folds open for easy troubleshooting.
Steady Structure
Welded frame, precision long shafts. 60m/min (1,200 sheets/hour). All key components (electrical, gas, bearings, motors) imported (Japan, Europe, etc.).
Technical Parameter
|
Product Model |
ZD-3300-V60 |
Remarks |
|
|
Maximum Folding Width (mm) |
When single-channel selected |
1100-3300 |
Bed sheets, quilt covers |
|
When four-channel selected |
350-700 |
Pillowcases (2 folds) |
|
|
Stacking Quantity (pcs) |
1-10 |
Bed sheets, quilt covers |
|
|
Pillowcase Passing Quantity (pcs) |
1-4 |
Pillowcases |
|
|
Maximum Conveying Speed (m/min) |
60 |
|
|
|
Air Supply Pressure (Mpa) |
0.5-0.7 |
|
|
|
Compressed Air Consumption (L/min) |
450 |
|
|
|
Voltage (V/HZ) |
380/50 |
3-phase |
|
|
Connected Power (Kw) |
3.55 |
Including stacker |
|
|
Overall Dimensions (mm) |
4936×5530×1830 |
Including stacker |
|
|
Weight(Kg) |
3000 |
Including stacker |
|
