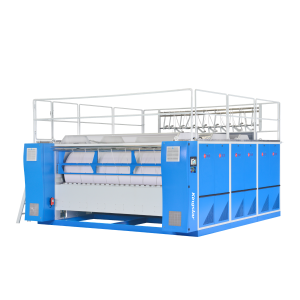

Steam-Heated Chest+Roller Ironer
Applicable Industry:
Details Display
Flatness Design
Features a PLC intelligent control system and 10-inch full-color touchscreen. Allows easy operation, customization of 100 ironing programs for different fabrics, and connects with various spreading/folding machines.
High-Quality Components
Uses superior processing techniques to cut maintenance difficulty. Major components (electrical, pneumatic, etc.) are high-quality imported products. Precision-machined fabric guide rollers keep ironing belts stable. The chest ironer’s power system enables “no adjustment, zero maintenance” with direct motor drive.

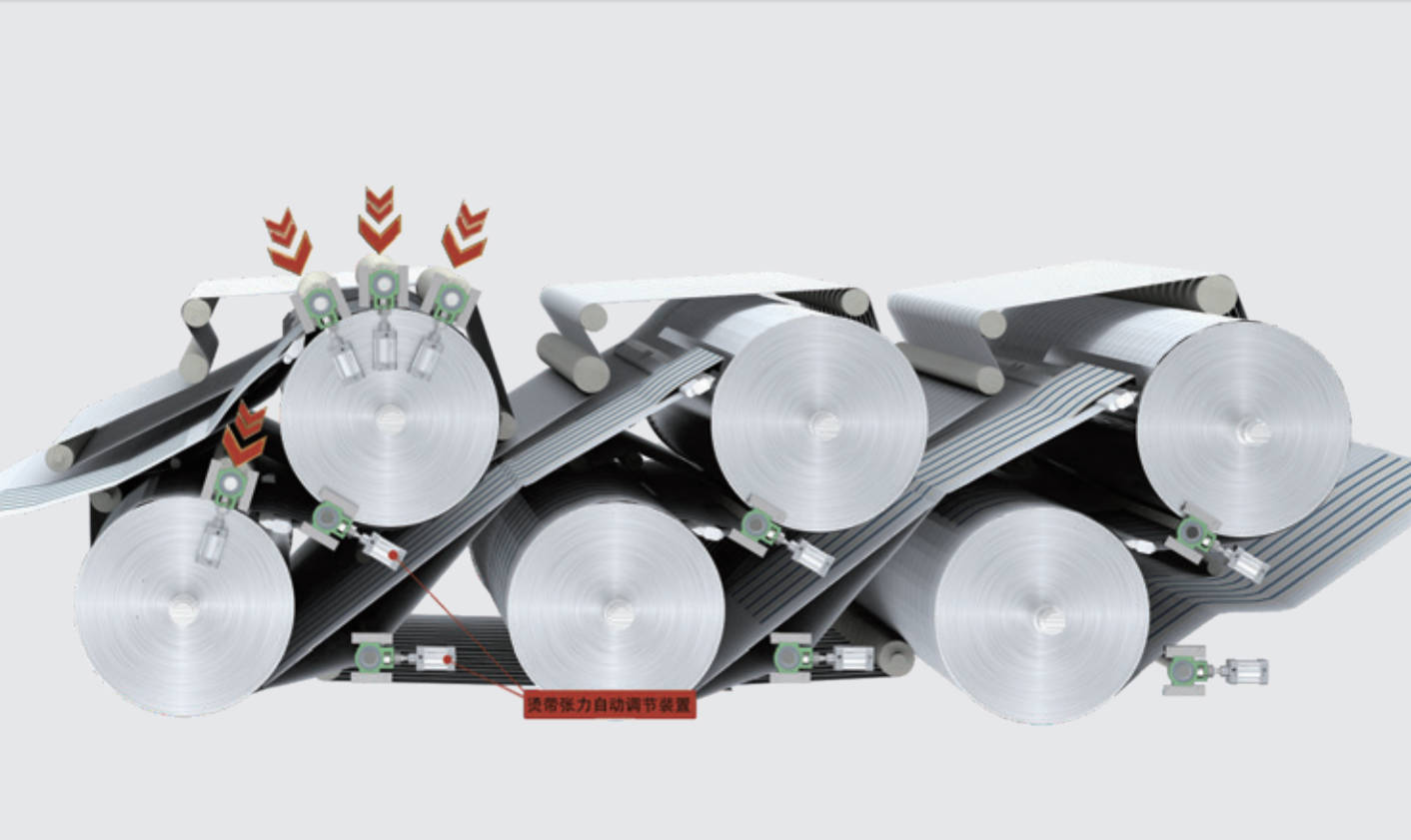

Roller-Chest Combination:Higher Efficiency and Better Flatness

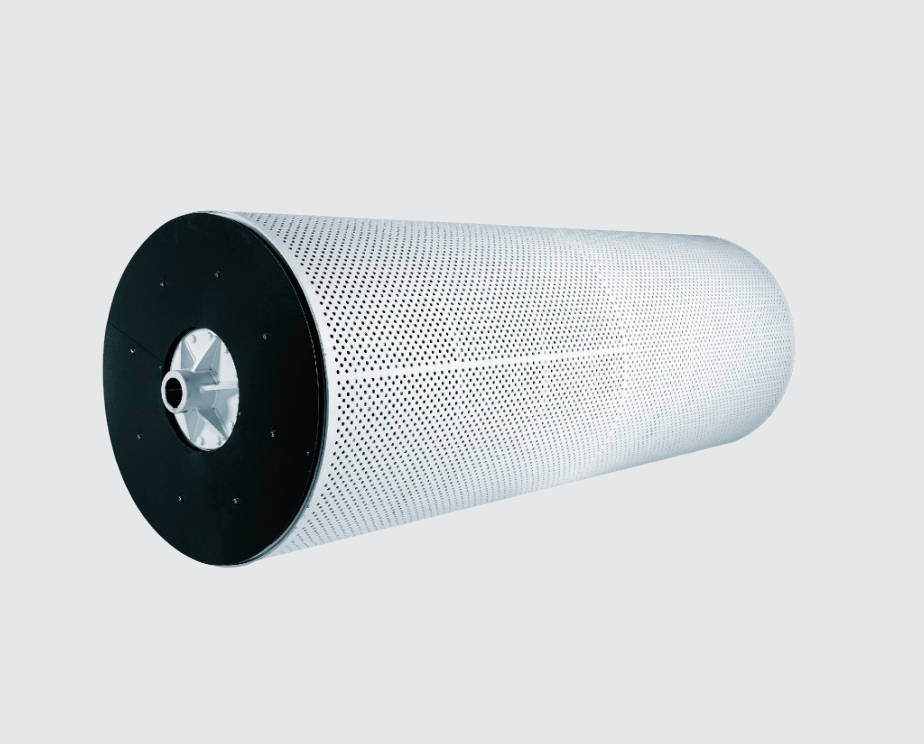

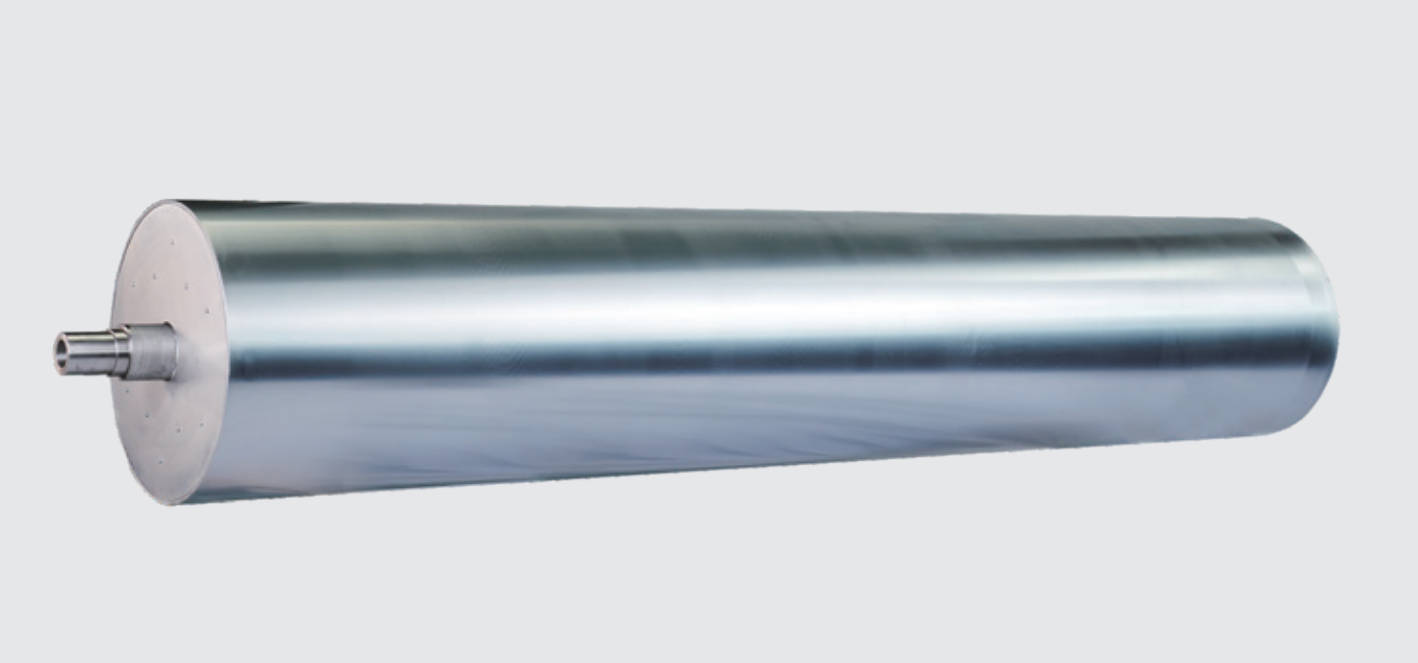

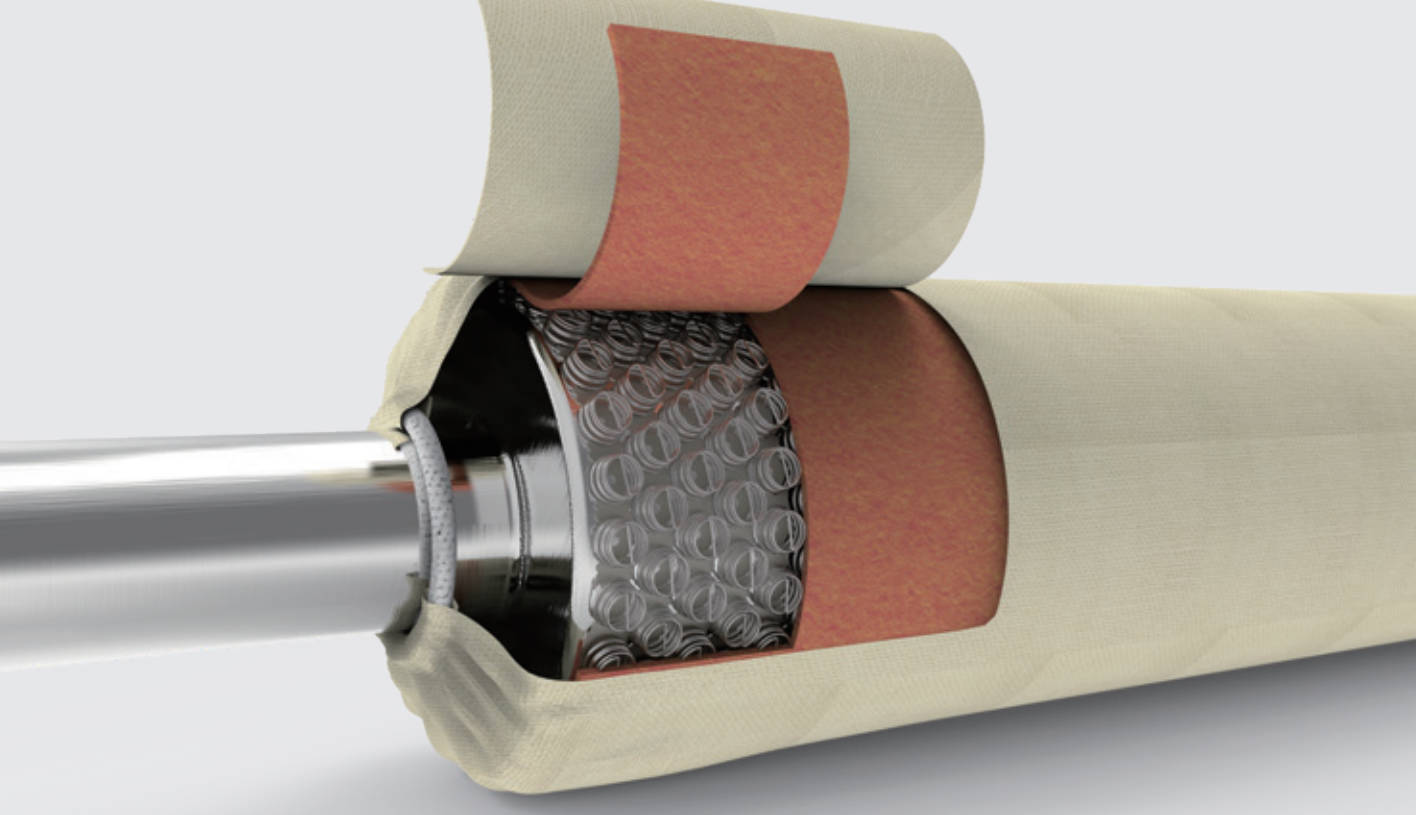

Key features enhance performance: elastic pressure rollers reduce moisture by 30%; high-quality carbon steel rollers (2.5x faster heat transfer) boost speed/flatness; 270° wrapping enables double-sided ironing for quick drying; modular suction cylinders with independent dehumidification increase operational speed.
Multiple Designs for Energy Savings and Consumption Reduction
Employs all-round insulation (cutting steam use by 5%), enhanced thermal efficiency via synchronized steam heating/ironing, automatic temperature adjustment (regulating steam pressure 1.5 - 2.5 bar), and a programmable PLC system to manage steam supply for reduced consumption.
Technical Parameter
|
Serial No. |
Name/Specification |
Unit |
650 Four-Roller [GYP-3300Z-650IV] |
| 1 | Ironing cylinder spec | mm | ∅650×3300 |
| 2 | Number of cylinders | piece | 4 |
| 3 | Steam pressure | Mpa | 0.1-1.0 |
| 4 | Fabric ironing speed | m/min | 5-60 |
| 5 | Cylinder heating medium | - | Steam |
| 6 | Steam inlet flange | mm | DN40 (dual inlet) |
| 7 | Condensate flange | mm | DN40 |
| 8 | Steam consumption (at 0.4Mpa) | kg/h | 570 |
| 9 | Motor power | KW | 4 |
| 10 | Power supply | V/phase/HZ | 380/3 L+N+PE/50 |
| 11 | Total weight | kg | 11750 |
| 12 | Overall dimensions (L×W×H) | mm | 3508×4738×2875 |
|
Serial No. |
Name/Specification |
Unit |
2 chests(CYP-3300Z-1200IIR) |
| 1 | Ironing cylinder spec | mm | ∅1174×3300 |
| 2 | Number of drums | piece | 4 |
| 3 | Steam pressure | Mpa | 0.6-1.0 |
| 4 | Fabric ironing speed | m/min | 5-60 |
| 5 | Cylinder heating medium | - | Steam |
| 6 | Steam inlet flange | mm | DN50 (Single Air Intake) |
| 7 | Condensate flange | mm | DN50 |
| 8 | Steam consumption (at 0.4Mpa) | kg/h | 660 |
| 9 | Motor power | KW | 11/Unit(2 units) |
| 10 | Power | V/phase/HZ | 380/3 L+N+PE/50 |
| 11 | Total weight | kg | 11250 |
| 12 | Overall dimensions (L×W×H) | mm | 4087×47798×3077 |
