CLM CYP-R Gas-Heating Flexible Chest Ironer
Applicable Industry:
Details Display
Flexible Chest
S.Iron uses flexible chest which designed by CLMTEXFINITY, the flexible chest is made by two stainless steel plates, the internal flow and distribution of thermal conductivity is made from computing fluid dynamics analysis
Direct Motor Drive
The independent motor is used to directly drive each drum, so it solved the problem of the limitations of synchronous belts or rolls on each drum speed difference. The speed difference between each drum can even be set according to the type of linen.

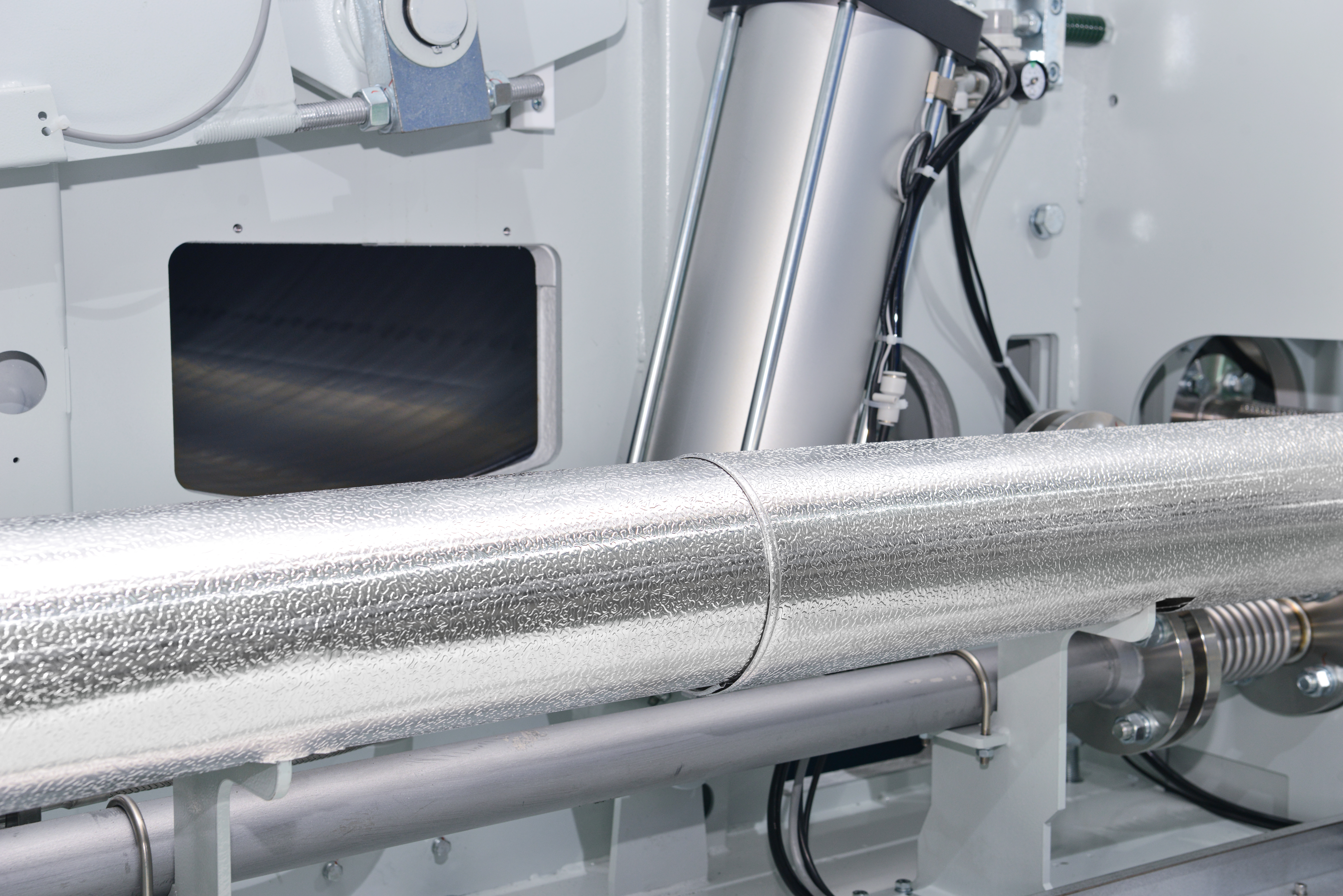

Heat Exchanger
The three layer heat exchanger make the ironer to be the most efficient and energy saving in the market. The oil pipe of the heat exchanger adopts the largest size in this industry. This design will not over-heat the oil, so that the thermal oil has a longer life.
Energy Efficiency
Energy saving and efficient, the three rolls ironer gas consumption is less than 38 cubic/hour, the temperature of the thermal oil can reach 300 ° C, the ironing temperature can reach 198 ° C, the ironing speed is more than 35 meters
Moisture Suction System
Powerful moisture suction system,installed for each drum.
Sheets Corners Flattening Device
As an option, we set up a device for flattening the corners of sheets at the end of the entrance of the feeding platform to perfectly eliminate the wrinkles.
Technical Parameter
|
Model |
2rolls |
3rolls |
|
|
Burner Power |
101KW-550KW |
150KW-850KW |
|
|
Heat Exchanger |
465KW |
581KW |
|
|
Suction Power |
5KW |
7KW |
|
|
Maximum Electrical Consumption |
35KW/hour |
50KW/hour |
|
|
Capacity |
1150KW/hour |
1440KW/hour |
|
|
Maximum Gas Consumption |
42.3M/hour |
52.8M/3hour |
|
|
Ironing Speed |
10-50m/min |
10-60m/min |
|
|
Dimension(L×W×H )mm |
3000mm |
5000*4435*3094 |
7050*4435*3094 |
|
3300mm |
5000*4735*3094 |
7050*4735*3094 |
|
|
3500mm |
5000*4935*3094 |
7050*4935*3094 |
|
|
4000mm |
5000*5435*3094 |
7050*5435*3094 |
|
|
Weight（KG） |
3000mm |
9650 |
14475 |
|
3300mm |
10600 |
16875 |
|
|
3500mm |
11250 |
16875 |
|
|
4000mm |
13000 |
19500 |
|
