Steam-Heated Flexible Chest Ironer
Applicable Industry:
Details Display
Using Advanced European Technologies
30+ years Experience in the industrial laundry equipment manufacturing field
Sales centers in 27 countries worldwide.
Energy-Saving Design
Enclosures use calcium aluminate insulation boards to cut heat/steam loss, boost efficiency, and ensure comfort.

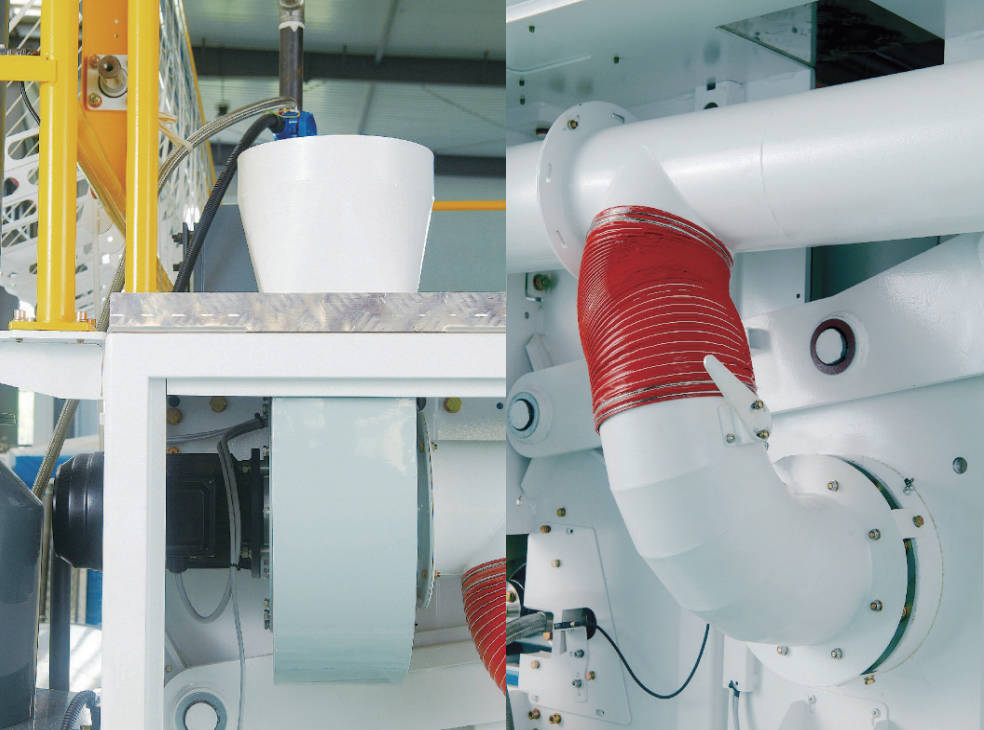

- Insulated pipelines for safety and energy saving.
- Heat recovery system recycles thermal energy.

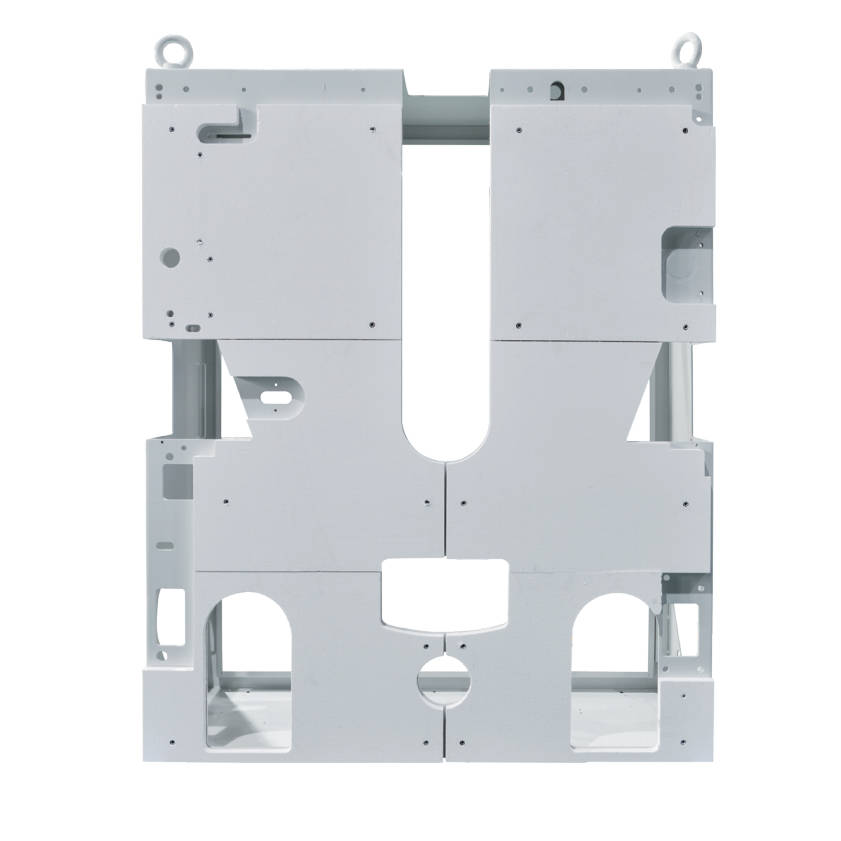

Stability Design

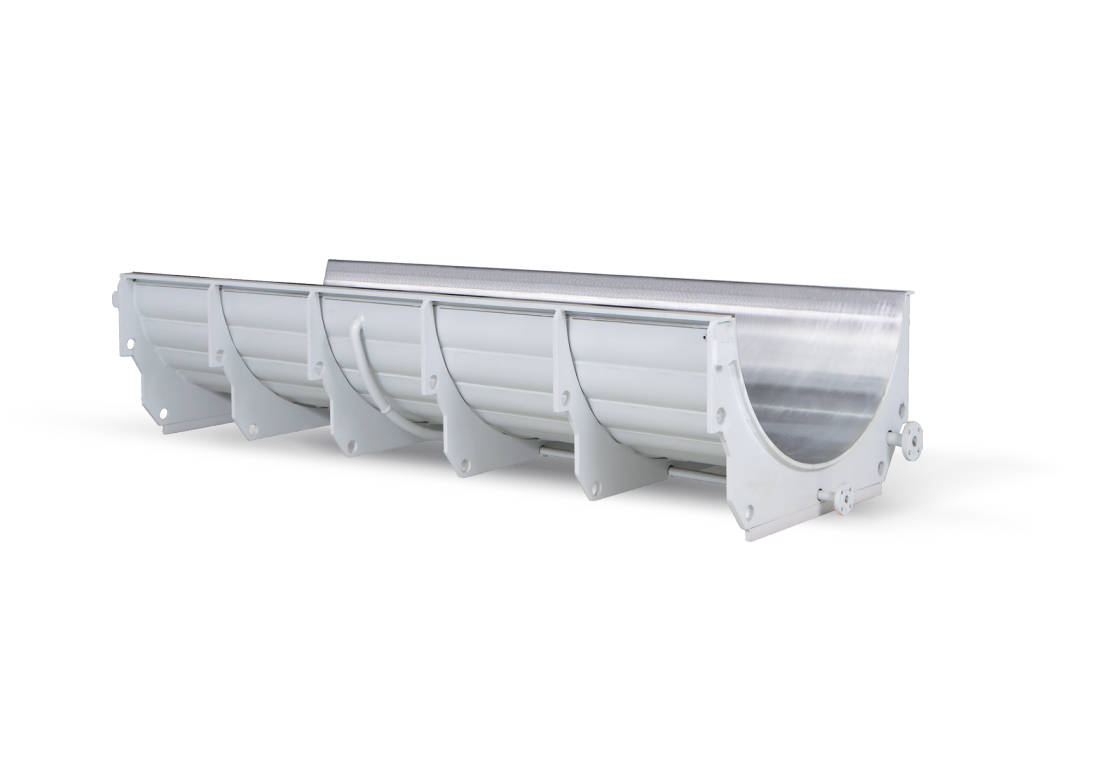

German-made steam-heated fixed chests (Hodel), heavy-duty, 30-bar pressure tested, service life over 20 years.
- High-quality steel chests with polished inner surfaces (extends felt life) and mirror-finished bodies (reduces friction, improves ironing quality).
Easy Maintenance Design

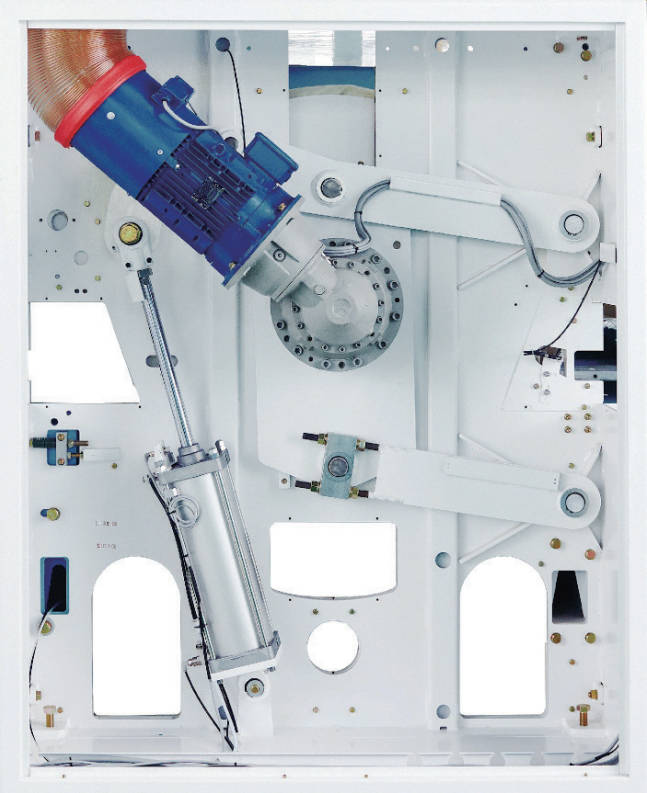

- Independent motor direct drive, no belts/hazardous transmission devices.
- Simple transmission system: no adjustment, zero maintenance.
- No belts/sprockets/chains/grease: cuts failure rates and maintenance costs.
Safe Design
Omron PLC: temperature monitoring, safe shutdown.
Imported key switch: easy operation.
Independent safety PLC: dual circuit control.
Technical Parameter
|
Steam-Heated Flexible Chest Ironer |
||||
|
Specification / Model |
1-Chest CYP-3300Z-1200IG |
2-Chest CYP-3300Z-1200IIG |
3-Chest CYP-3300Z-1200IIIG |
|
|
Drive Motor Power |
11KW/Chest |
11KW/Chest |
11KW/Chest |
|
|
Steam Pressure |
0.6-1Mpa |
0.6-1Mpa |
0.6-1Mpa |
|
|
Steam Consumption |
340 kg/h |
660 kg/h |
950 kg/h |
|
|
Capacity |
250~300 pieces/hour |
500~600 pieces/hour |
800~1000 pieces/hour |
|
|
Ironing Speed |
5-35 m/min |
5-50 m/min |
5-60 m/min |
|
|
Equipment Power (kw) |
13.4 |
25.6 |
37.1 |
|
|
Overall Dimensions (L×W×H mm) |
3000mm |
2505×4435×3220 |
4080×4435×3220 |
5655×4435×3220 |
|
|
3300mm |
2505×4735×3220 |
4080×4735×3220 |
5655×4735×3220 |
|
|
3500mm |
2505×4935×3220 |
4080×4935×3220 |
5655×4935×3220 |
|
|
4000mm |
2505×5435×3220 |
4080×5435×3220 |
5655×5435×3220 |
|
Total Weight (KG) |
3000mm |
4975 |
9650 |
14475 |
|
|
3300mm |
5295 |
11250 |
16875 |
|
|
3500mm |
5775 |
11730 |
17355 |
|
|
4000mm |
6650 |
13000 |
19500 |
