Products
Shuttle Conveyor
Applicable Industry:

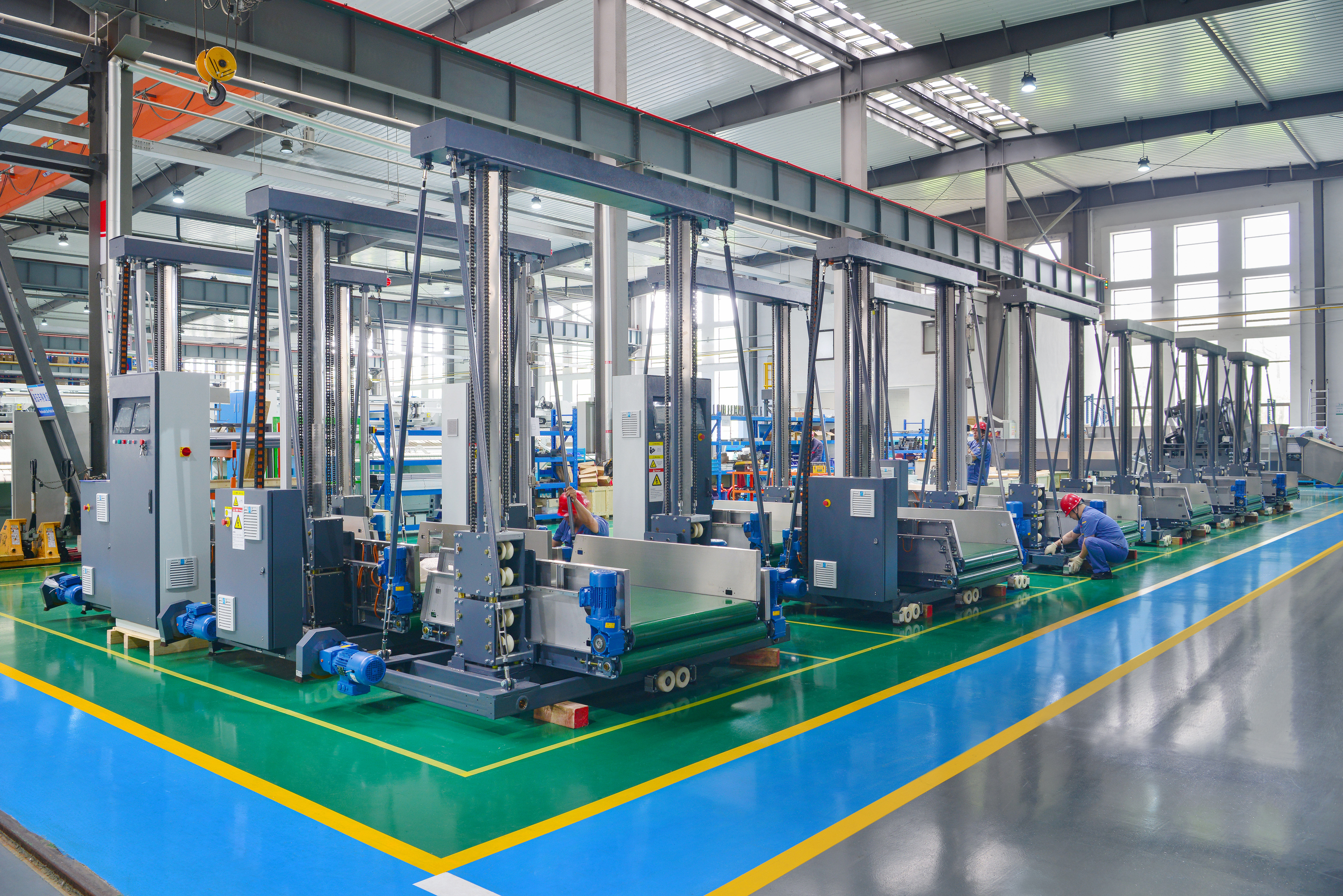

Gantry Frame
Adopt the gantry frame structure design, the structure is firm and the operation is stable.
Protection Device
There are touch protection devices on both sides at the bottom to effectively protect personal safety.
Double Layer
Adopt double layers structure design with higher transmission efficiency.
Transfer Smoothly
It can achieve accurate stops when walking and unloading, and stable transportation, and it will not cause damage to personnel or machines due to power outages.
Quality Assurance
All electrical components, pneumatic elements, and membranes are from German and Japanese brands.
Technical Parameters
|
Model |
CS-601 |
CS-602D |
CS-801 |
CS-802D |
| Product Model | CS-601 | CS-602D | CS-801 | CS-802D |
| Rated Linen Loading Weight (kg) | 60 | 60 | 80 | 80 |
| Number of Linen Cakes per Load (pcs) | 1 | 2 | 1 | 2 |
| Voltage (V) | 380 | 380 | 380 | 380 |
| Connected Power (kW) | 4.12 | 4.49 | 4.12 | 5.84 |
| Power Consumption (kWh/h) | 2 | 2.3 | 2 | 2.6 |
| Weight (kg) | 850 | 1000 | 1130 | 1620 |
| Overall Dimension (W×D×H, mm) | 3140×1615×3040 | 3140×1615×3040 | 3140×1823×3040 | 3460×1983×3410 |
