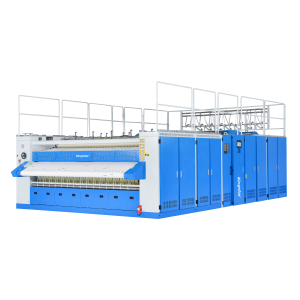

Steam Heating Fixed/Flexible Chest Ironer
Applicable Industry:
Details Display
PLC Control System
The Omron intelligent control system-PLC-converts the values measured by the temperature sensors into a display. It automatically shuts down the device to protect equipment and personnel safety in the event of temperature loss of control.
Insulation Design

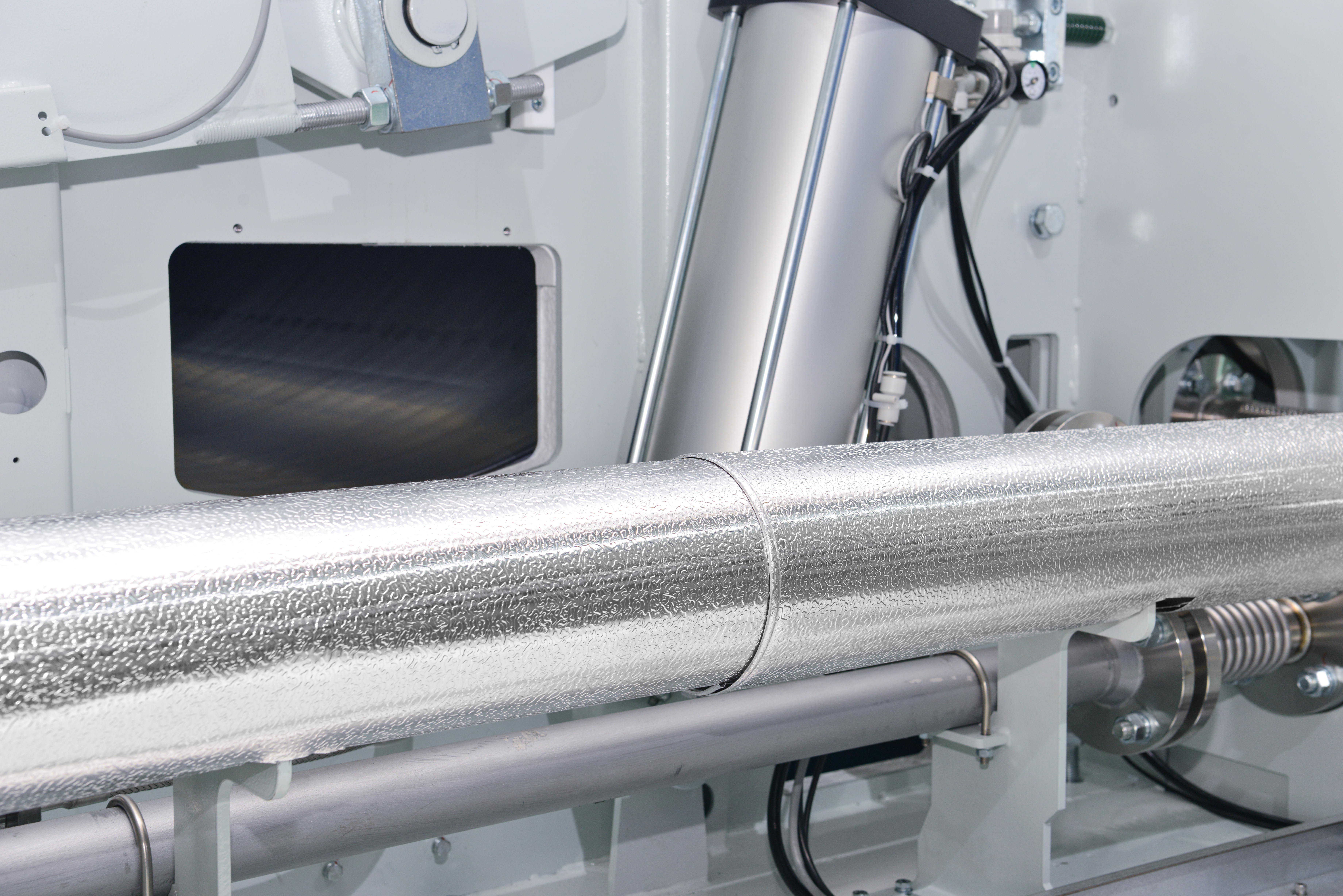

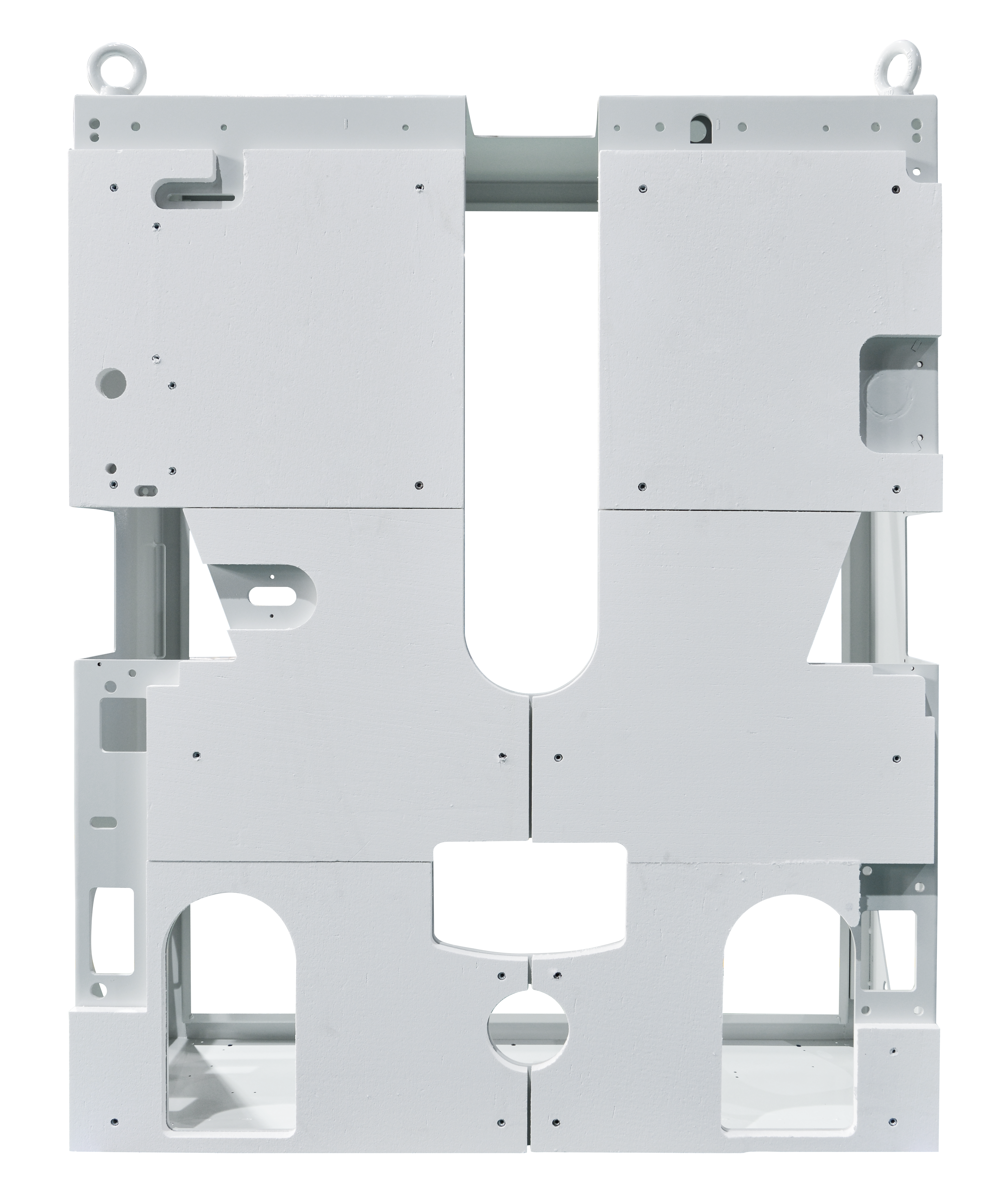

The interior of all enclosures is designed with calcium aluminate insulation boards, reducing rapid heat loss and steam energy consumption while improving production efficiency and creating a comfortable working environment. All pipelines are designed with insulation to ensure safety while achieving optimal energy-saving results.
Direct Motor Drive
The chestironer uses an independent motor for direct drive, eliminating belts or other hazardous power transmission devices.
Maintenance-free
With no belts, sprockets, chains, or grease design, the direct transmission significantly reduces failure rates and maintenance costs.
Convenient Programs
Customizable with up to 100 intelligent ironing programs, allowing for perfect control of various ironing parameters, including ironing speed, chest temperature, and cylinder pressure, to meet different fabric ironing needs.
Stability
Steam Heating Fixed Chests are made by Hodel in Germany. This kind of chest use heavey structure design, after processing and welding, the chest will be tested by 30 bar pressure to ensure the chest is enough safe and good use. The service life must be more than 20 years.
Technical Parameter
| Steam Heating Fixed Chest Ironer | |||
| Specifications and Models | 2 Chest | 3 Chest | |
| CYP-3300Z-1200IIG | CYP-3300Z-1200IIIG | ||
| Drive Motor Power | 11KW/chest | 11KW/chest | |
| Steam Pressure | 0.6-1Mpa | 0.6-1Mpa | |
| Steam Consumption | 695 | 980 | |
| Capacity | 900kg/hour | 1250kg/hour | |
| Power consumption kW per hour | 38 | 40 | |
| Overall dimensions:length×width×height mm | 3000mm | 5000×4435×3094 | 7050×4435×3094 |
| 3300mm | 5000×4935×3094 | 7050×4935×3094 | |
| 3500mm | 5000×4935×3094 | 7050×4935×3094 | |
| 4000mm | 5000×5435×3094 | 7050×5435×3094 | |
| Weight（KG） | 3000mm | 9650 | 14475 |
| 3300mm | 11250 | 16875 | |
| 3500mm | 11250 | 16875 | |
| 4000mm | 13000 | 19500 | |
| Steam Heating Flexible Chest Ironer | ||||
| Specifications and Models | 1 Chest | 2 Chest | 3 Chest | |
| CYP-3300Z-12001R | CYP-3300Z-1200IIR | CYP-3300Z-1200IIIG | ||
| Drive Motor Power | 11KW/chest | 11KW/chest | 11KW/chest | |
| Steam Pressure | 0.6-1Mpa | 0.6-1Mpa | 0.6-1Mpa | |
| Steam Consumption | 340 | 660 | 950 | |
| Capacity | 550kg/hour | 900kg/hour | 1250kg/hour | |
| Burning Speed | 5-35 m/minute | 5-50 m/minute | 5-60 m/minute | |
| Power consumption kW per hour | 13.4 | 25.6 | 37.1 | |
| Overall dimensions:length×width×height mm | 3000mm | 2505×4435×3220 | 4080×4435×3220 | 5655×4435×3220 |
| 3300mm | 2505×4935×3220 | 4080×4935×3220 | 5655×4935×3220 | |
| 3500mm | 2505×4935×3220 | 4080×4935×3220 | 5655×4935×3220 | |
| 4000mm | 2505×5435×3220 | 4080×5435×3220 | 5655×5435×3220 | |
| Weight（KG） | 3000mm | 4975 | 9650 | 14475 |
| 3300mm | 5295 | 11250 | 16875 | |
| 3500mm | 5775 | 11250 | 16875 | |
| 4000mm | 6650 | 13000 | 19500 | |
